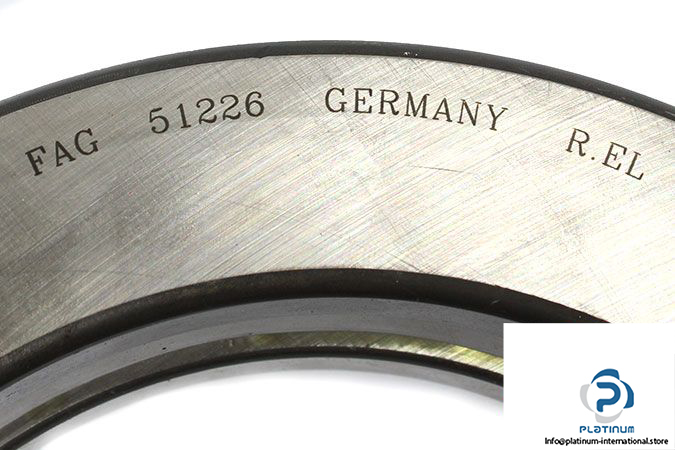

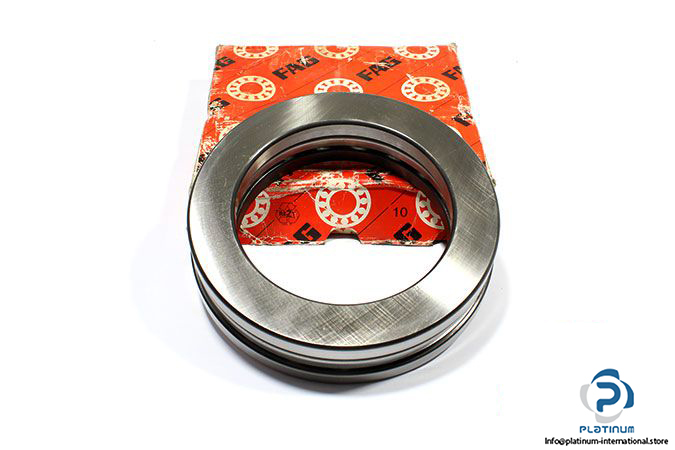

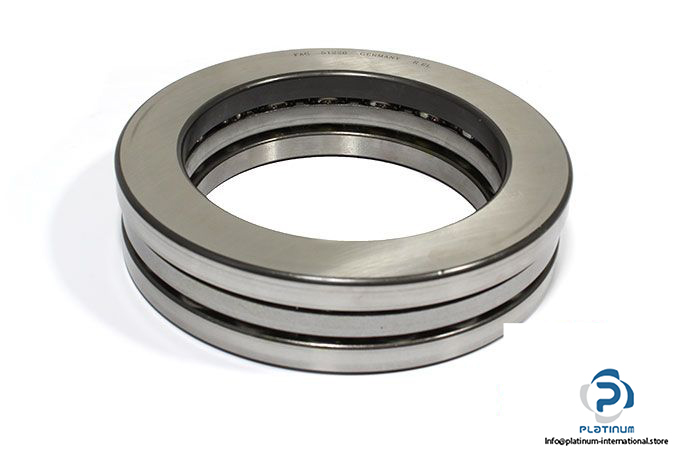

FAG 51226 Axial Deep Groove Ball Bearing

Manufacturer: Schaeffler FAG

Type: Axial Deep Groove Ball Bearing single direction

Model: 51226

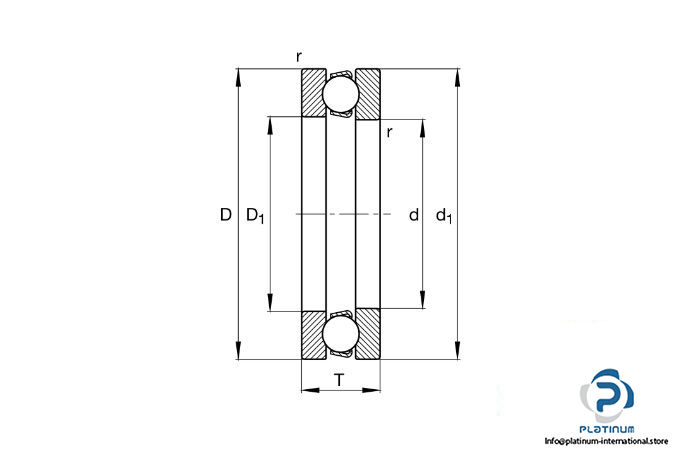

Dimensions

Inner diameter shaft washer d: 130 mm

Outer diameter housing washer D: 190 mm

Height T: 45 mm

Outer diameter shaft washer d₁: 187 mm

Minimum chamfer dimension r_min: 1.5 mm

Basic load ratings, axial:

Dynamic C_a: 184000 N

Static C_0a: 540000 N

Fatigue load rating C_ua: 19500 N

Limiting speed: 2210 rpm

Reference speed: 2850 rpm

Cage: Steel sheet metal

Operating temperature: -30 … +150 °C

Weight: 4 kg
