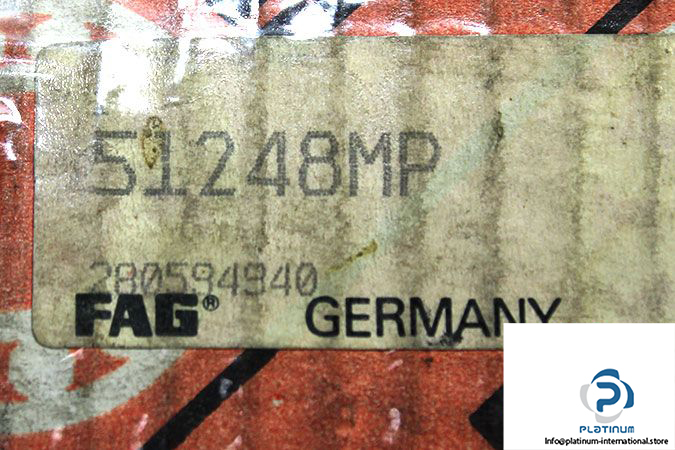

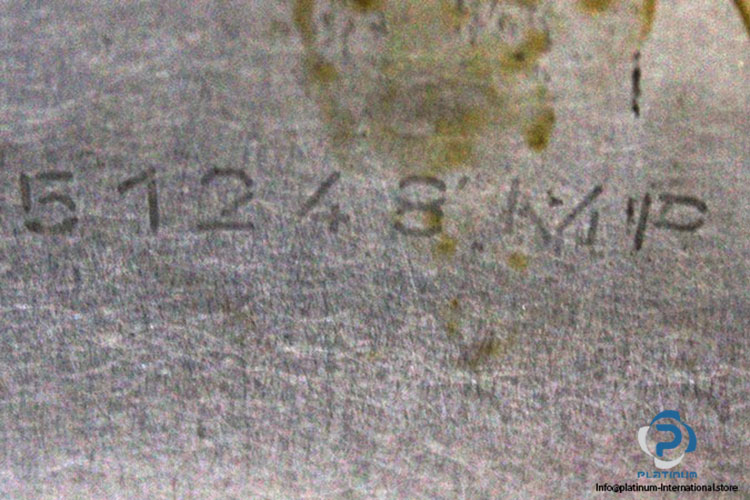

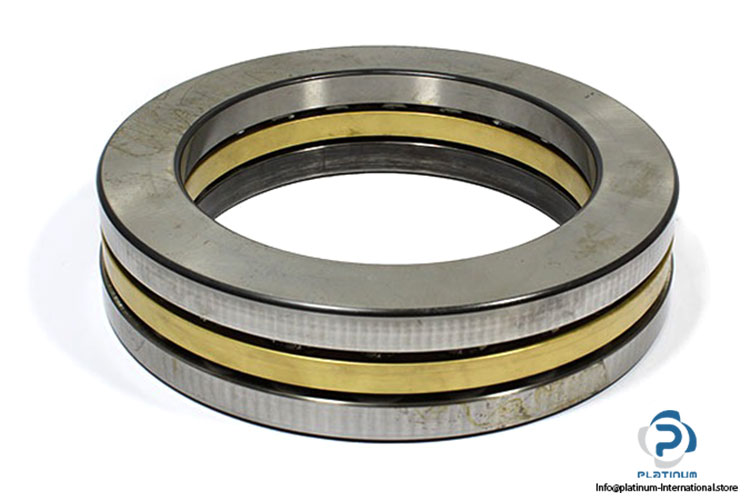

FAG 51248MP Axial Deep Groove Ball Bearing

Manufacturer: FAG
Type: Axial deep groove bearing
Model: 51248 MP

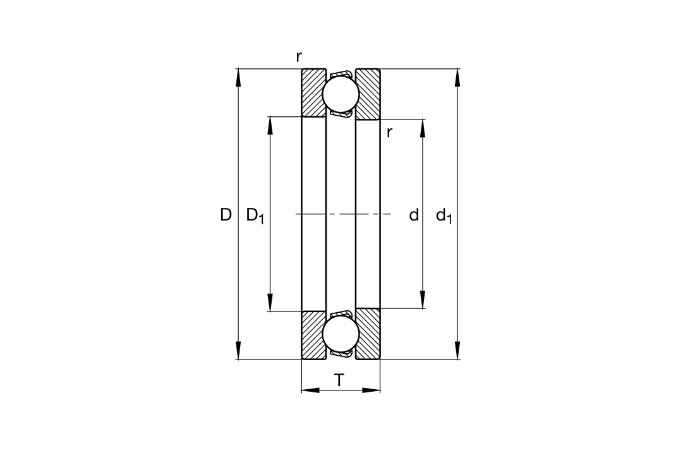

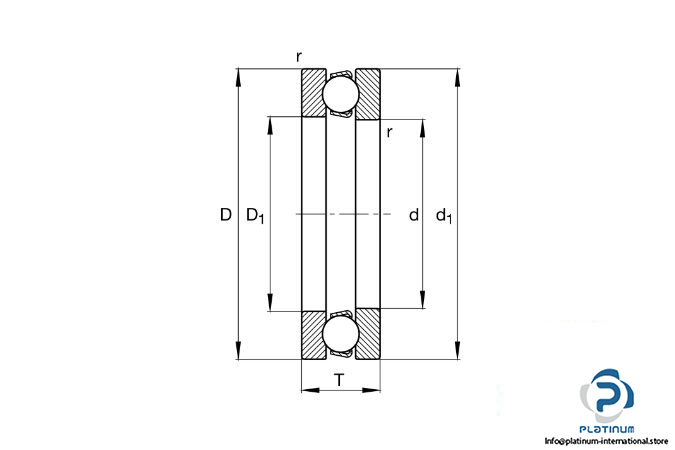

Dimensions
Inner diameter shaft washer d: 240 mm
Outer diameter housing washer D: 340 mm
Height T: 78 mm
Outer diameter shaft washer d₁: 335 mm
Minimum chamfer dimension r _min: 2.1 mm
Basic load ratings, axial:
Dynamic C_a: 435000 N
Static C_0a: 1840000 N
Fatigue load rating C_ua: 49000 N
Limiting speed: 1200 rpm
Reference speed: 1510 rpm
Cage: MP, Solid Brass Cage
Operating temperature: -30 … +200 °C
