FAG 52312 Axial Deep Groove Ball Bearing

Manufacturer: Schaeffler FAG

Type:  Axial Deep Groove Ball Bearing double direction

Model: 52312

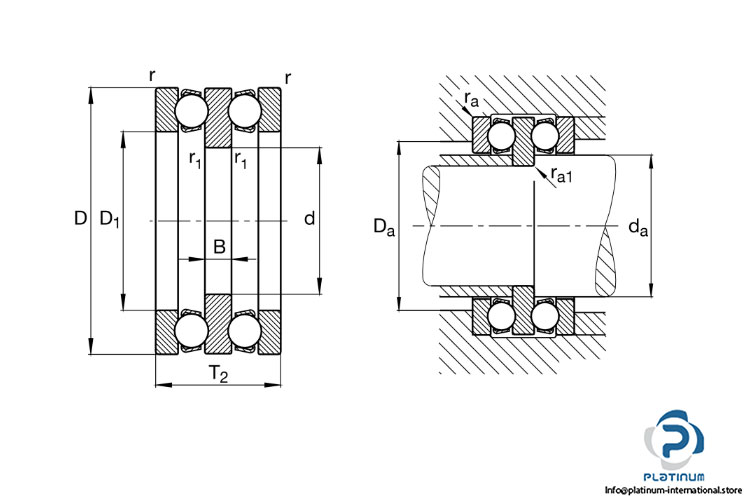

Dimensions:

Inner diameter shaft washer d: 50 mm

Outer diameter housing washer D: 110 mm

Maximum diameter shaft shoulder d_a: 60 mm

Height T₂: 64 mm

Dynamic load rating, axial: 101000 N

Static load rating, axial: 207000 N

Fatigue load limit, axial: 9500 N

Limiting speed: 3150 RPM

Reference speed: 5400 RPM

Operating temperature: -30 … +150 °C

Cage material: Steel
