FAG 6009 2Z Deep Groove Ball Bearing
New
In stock2 unitsReady to ship
Deep Groove Ball Bearing

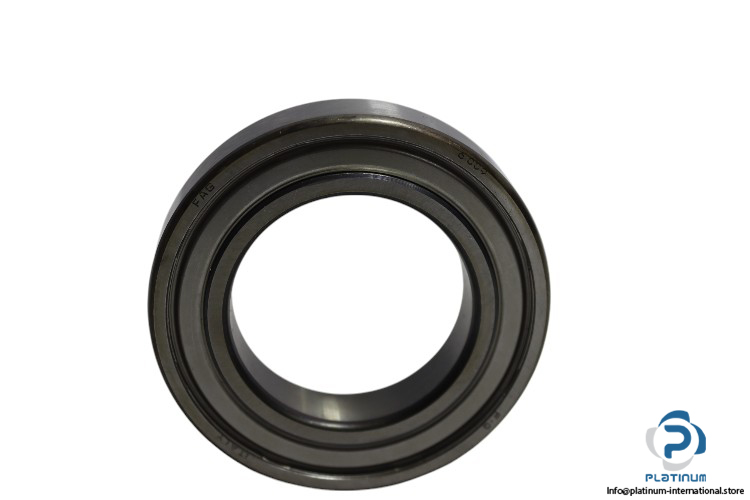

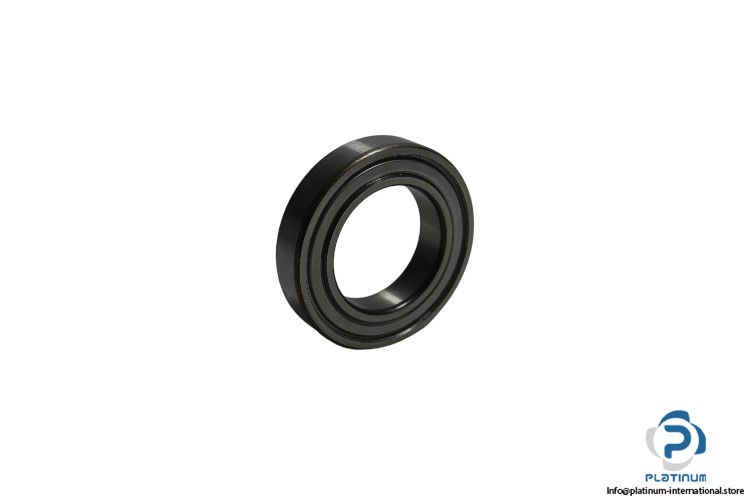

The FAG 6009 2Z is a durable and efficient deep groove ball bearing with 2Z shields on both sides, 45 mm bore, and 75 mm outer diameter. Ideal for high-speed and precision operations with low maintenance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG 6009 2Z Deep Groove Ball Bearing
The FAG 6009 2Z is a high-performance deep groove ball bearing designed for durability, speed, and quiet operation. Equipped with 2Z non-contact shields on both sides and a steel sheet metal cage, it provides reliable performance under high-speed and moderate load conditions.
Manufacturer: FAG
Type: Deep Groove Ball Bearing
Model: 6009 2Z
| Bore Diameter (d) | 45 mm |
| Outer Diameter (D) | 75 mm |
| Width (B) | 16 mm |
| Dynamic Load Rating (Cr) | 21200 N |
| Static Load Rating (C0r) | 14400 N |
| Fatigue Load Limit | 750 N |
| Limiting Speed | 11200 rpm |
| Reference Speed | 9700 rpm |
| Cage | Steel Sheet Metal |
| Sealing | 2Z “ Non-Contact Shield on Both Sides |
