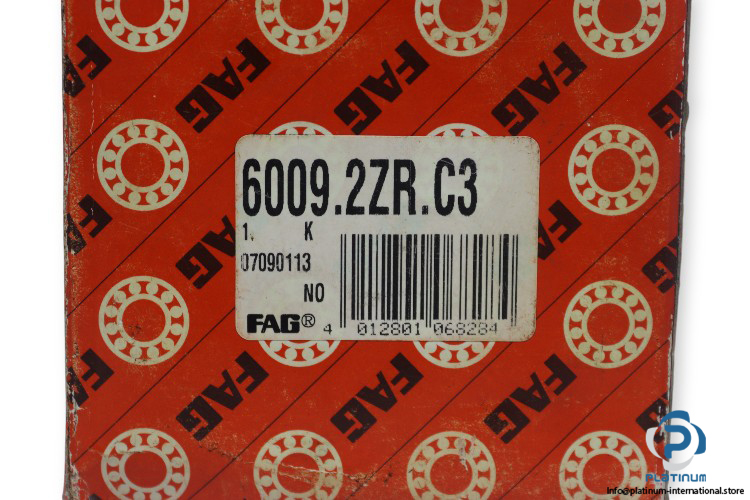

FAG 6009.2ZR.C3 Deep Groove Ball Bearing
Manufacturer: Schaeffler FAG
Type: Deep Groove Ball Bearing
Model: 6009 2ZR.C3
Dimensions
Bore Diameter d: 45 mm
Outer diameter D: 75 mm
Width B: 16 mm
Dynamic Cr: 21200 N
Static C0r: 14400 N
Fatigue load limit: 750 N
Limiting speed: 11200 rpm
Reference speed: 9700 rpm
Cage: steel sheet metal
Sealing: 2Z, Non-contact shield on both sides
Radial internal clearance: C3
