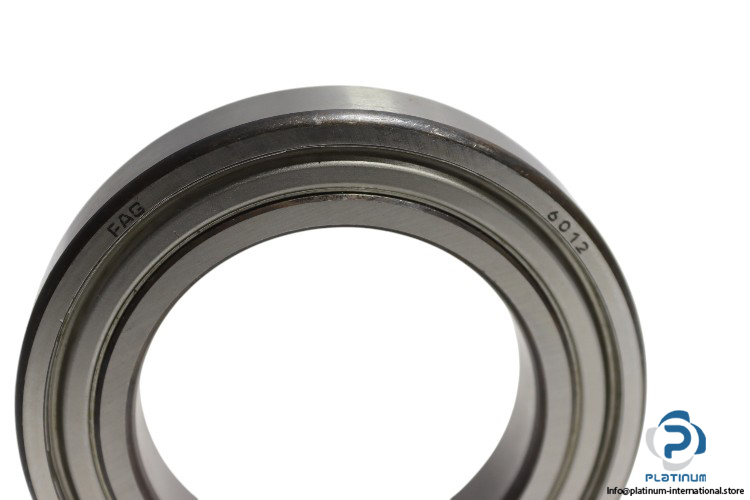

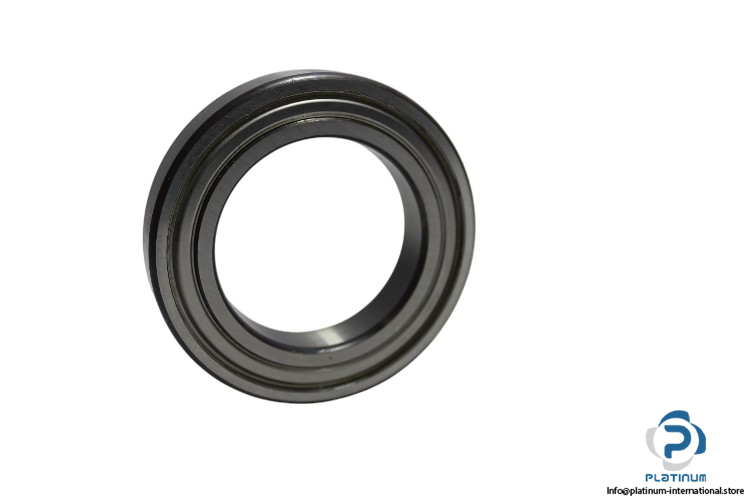

FAG 6012 2Z Deep Groove Ball Bearing
New
In stock2 unitsReady to ship
Deep Groove Ball Bearing
The FAG 6012 2Z is a high-performance ball bearing featuring 60 mm bore, 2Z non-contact shields, and a steel sheet cage. Designed for high-speed, low-friction operation in industrial machinery.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG 6012 2Z Deep Groove Ball Bearing
The FAG 6012 2Z is a precision-engineered deep groove ball bearing designed for high-speed and low-friction applications. It features steel sheet metal cage construction and 2Z non-contact shields on both sides, ensuring effective protection from contaminants while maintaining smooth operation at high speeds.
Manufacturer: FAG
Type: Deep Groove Ball Bearing
Model: 6012 2Z
| Bore Diameter (d) | 60 mm |
| Outer Diameter (D) | 95 mm |
| Width (B) | 18 mm |
| Dynamic Load Rating (Cr) | 31,500 N |
| Static Load Rating (C0r) | 23,200 N |
| Fatigue Load Limit | 1,230 N |
| Limiting Speed | 8,500 rpm |
| Reference Speed | 7,600 rpm |
| Sealing | 2Z, non-contact shield on both sides |
| Cage Material | Steel sheet metal |
