FAG 6013 2Z Deep Groove Ball Bearing
New
In stock1 unitReady to ship
Deep Groove Ball Bearing
The FAG 6013 2Z is a high-precision deep groove ball bearing with a 65 mm bore, 2Z shielding, and steel cage. Built for durability and high-speed performance up to 8100 rpm.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

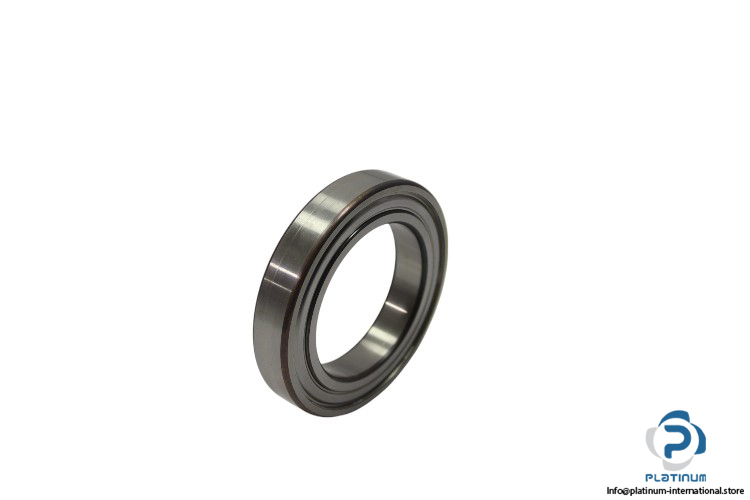

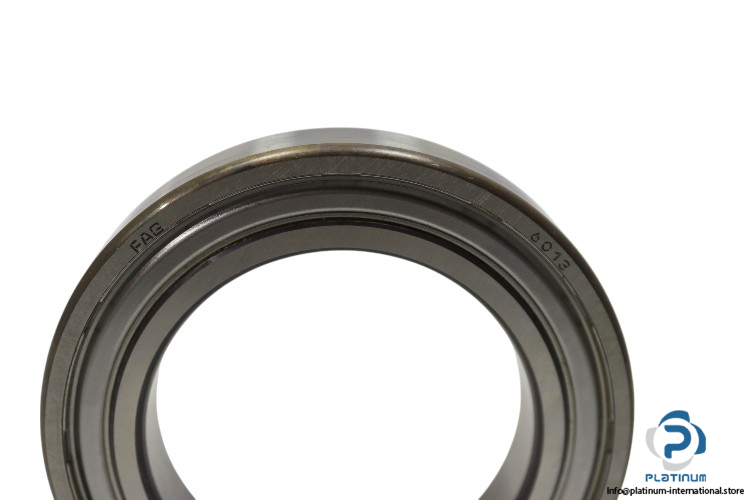

FAG 6013 2Z Deep Groove Ball Bearing
The FAG 6013 2Z Deep Groove Ball Bearing is a high-precision bearing built for low-friction performance and durability. With a 2Z non-contact shield on both sides and a steel sheet metal cage, it provides excellent protection and reliability in high-speed, high-load applications.
Manufacturer: FAG
Type: Deep Groove Ball Bearing
Model: 6013 2Z
| Bore Diameter (d) | 65 mm |
| Outer Diameter (D) | 100 mm |
| Width (B) | 18 mm |
| Dynamic Load Rating (Cr) | 32,500 N |
| Static Load Rating (C0r) | 25,000 N |
| Fatigue Load Limit | 1300 N |
| Limiting Speed | 8100 rpm |
| Reference Speed | 7100 rpm |
| Cage Type | Steel Sheet Metal |
| Sealing | 2Z, Non-contact shield on both sides |
