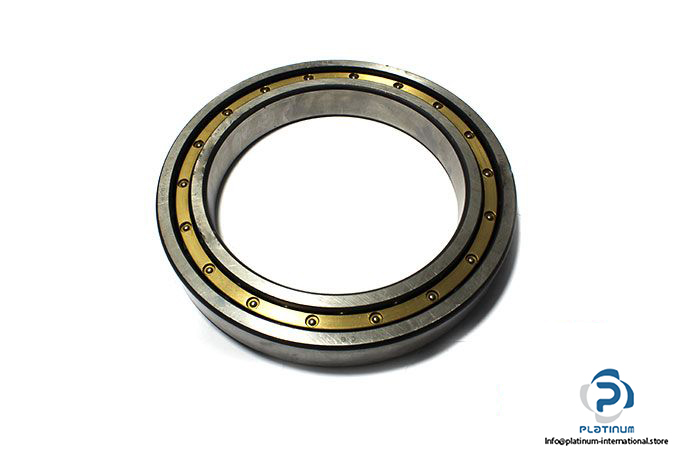

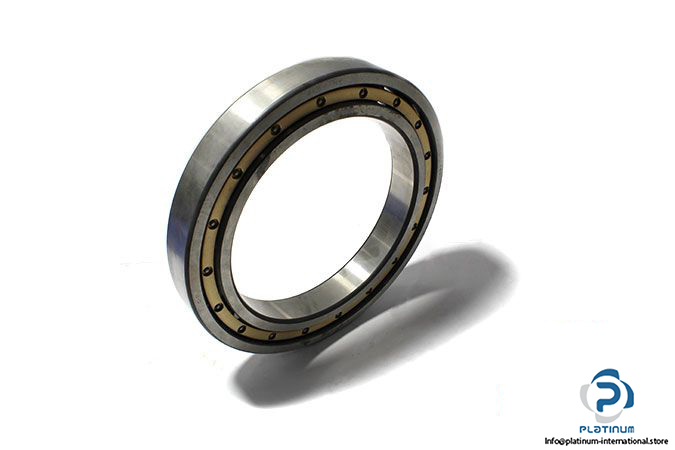

FAG 61940 Deep Groove Ball Bearing

Manufacturer: FAG

Type: Deep groove ball bearing

Model: 61940 MA

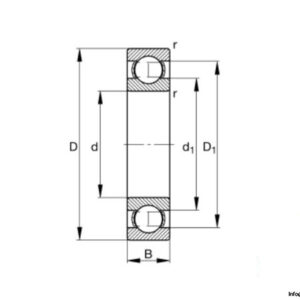

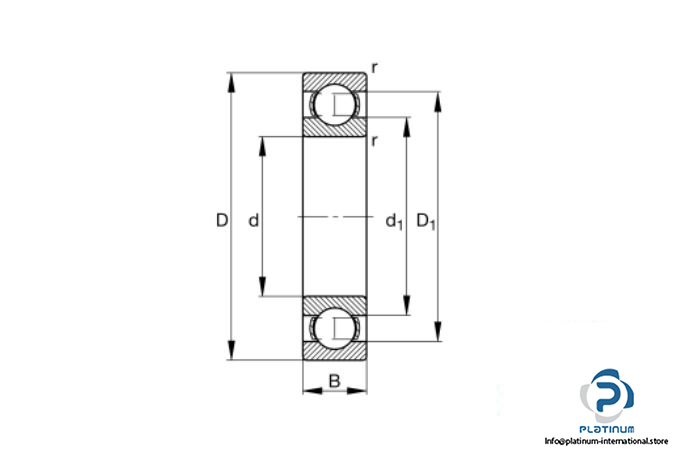

Dimensions:

Bore Diameter d: 200 mm

Outer diameter D: 280 mm

Width B: 38 mm

Minimum chamfer dimension r_min: 2.1 mm

Basic load ratings:

Dynamic C_r: 158000 N

Static C_0r: 168000 N

Fatigue load limit C_ur: 6400 N

Limiting speed: 4050 rpm

Reference speed: 2950 rpm

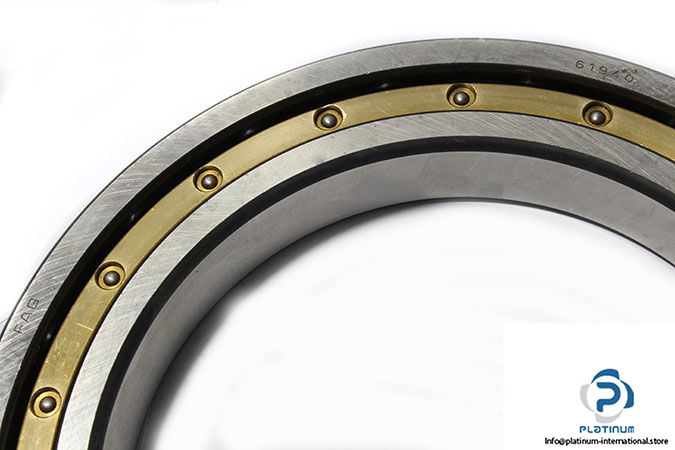

Cage: solid brass cage

Operating temperature: -30 … +200 °C

Weight: 7 kg
