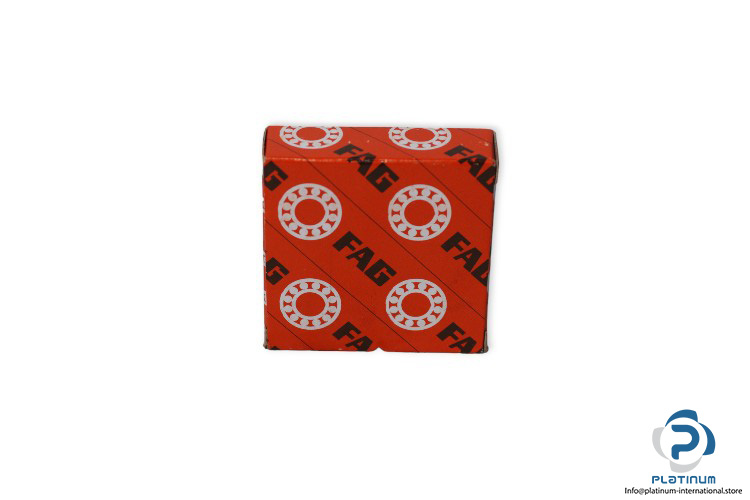

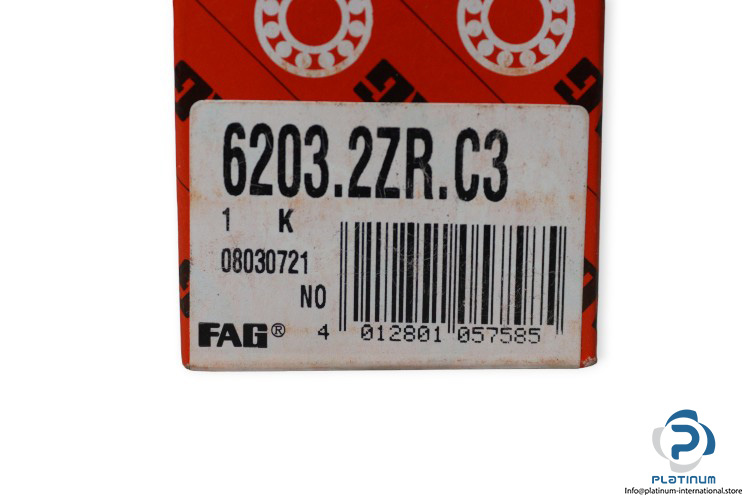

FAG 6203.2ZR.C3 Deep Groove Ball Bearing
Manufacturer: Schaeffler FAG
Type: Deep Groove Ball Bearing
Model: 6203 2ZR.C3
Dimensions
Bore Diameter d: 17 mm
Outer diameter D: 40 mm
Width B: 12 mm
Dynamic Cr: 10100 N
Static C0r: 4750 N
Fatigue load limit: 285 N
Limiting speed: 22300 rpm
Reference speed: 18100 rpm
Cage: steel sheet metal
Sealing: 2Z, non-contact shield on both sides
Radial internal clearance: C3
