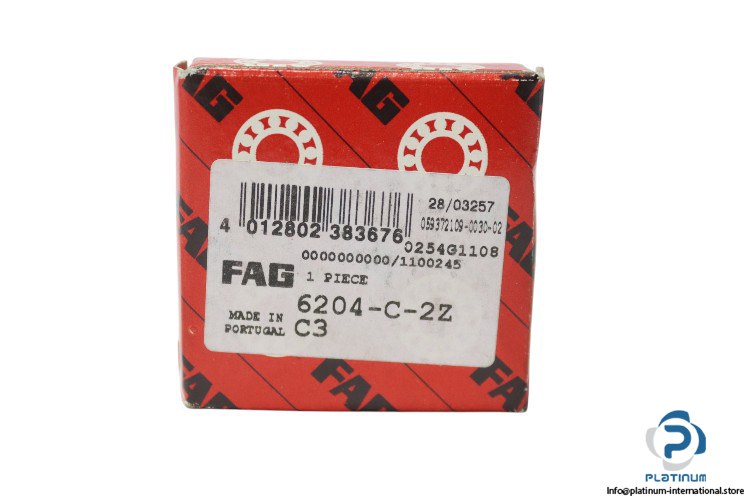

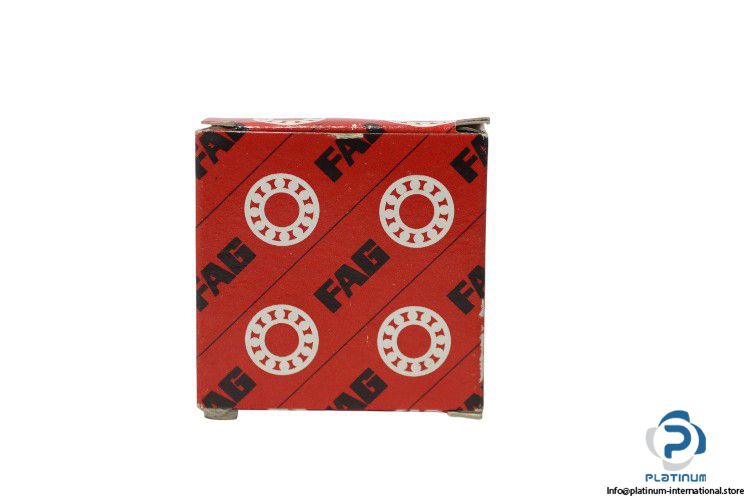

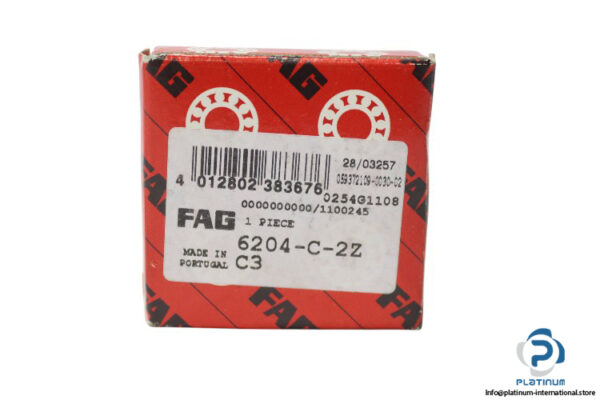

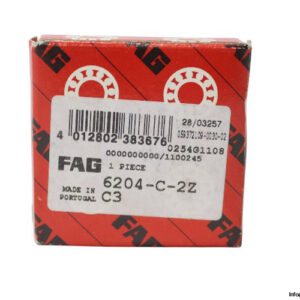

FAG 6204-C-2Z-C3 Deep Groove Ball Bearing
New
In stock4 unitsReady to ship
Deep Groove Ball Bearing
FAG 6204-C-2Z-C3 Deep Groove Ball Bearing features a 20 mm bore diameter and 47 mm outer diameter. It offers dynamic load rating of 14,700 N and a limiting speed of 20,600 1/min for reliable operation in demanding environments.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG 6204-C-2Z-C3 Deep Groove Ball Bearing
The FAG 6204-C-2Z-C3 Deep Groove Ball Bearing is designed for smooth, reliable operation in a wide range of applications. With a high dynamic load rating and high limiting speed, this bearing offers durability and efficiency under demanding conditions.
Manufacturer: FAG
Model: 6204-C-2Z-C3
Type: Deep Groove Ball Bearing
| Bore Diameter (d) | 20 mm |
| Outer Diameter (D) | 47 mm |
| Width (B) | 14 mm |
| Dynamic Load Rating (Cr) | 14,700 N |
| Static Load Rating (C0r) | 6,600 N |
| Fatigue Load Limit | 455 N |
| Limiting Speed | 20,600 1/min |
| Reference Speed | 18,100 1/min |
| Cage | Steel sheet metal |
| Sealing | 2Z, non-contact shield on both sides |
| Radial Internal Clearance | C3 |
