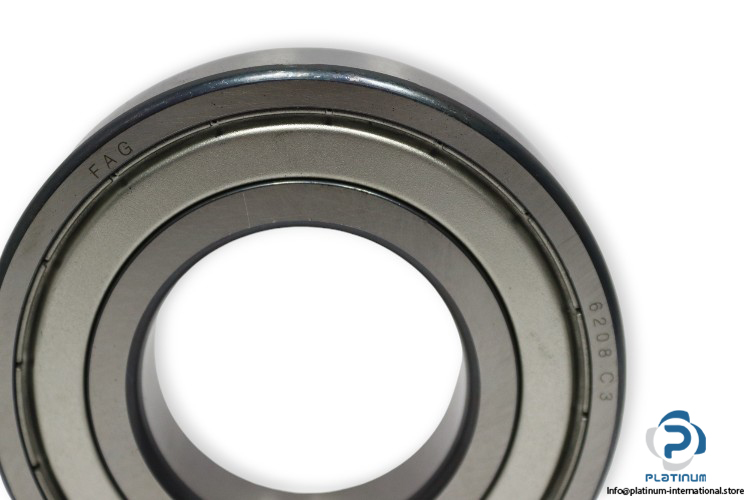

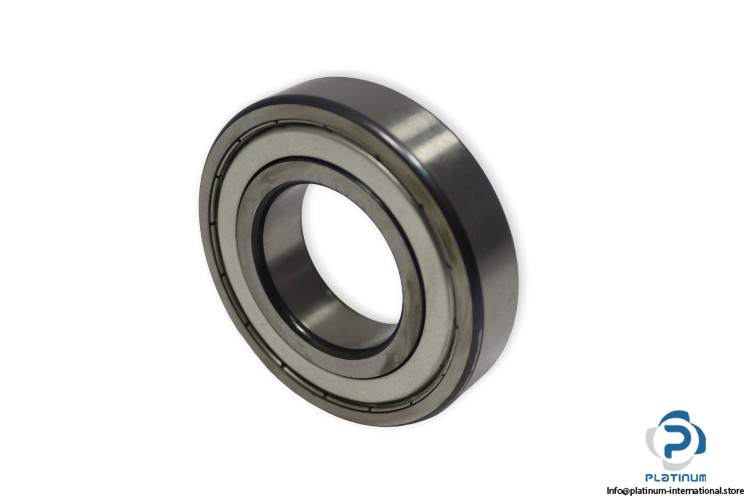

FAG 6208-2Z-C3 Deep Groove Ball Bearing

Manufacturer: FAG Schaeffler
Type: Single Row Deep Groove Ball Bearing
Model: 6208-2Z-C3

Dimensions:
Bore Diameter d: 40 mm
Outside Diameter: 80 mm
Bearing Width B: 18 mm
Basic dynamic load rating: 31,000 N
Basic static load rating: 17,800 N
Fatigue load limit: 1,080 N
Reference speed: 9,300 r/min
Limiting speed:  10,400 r/min
Sealing: Non-contact shield on both sides
Radial internal clearance: C3 Internal clearance larger than CN
Cage: Steel sheet metal
