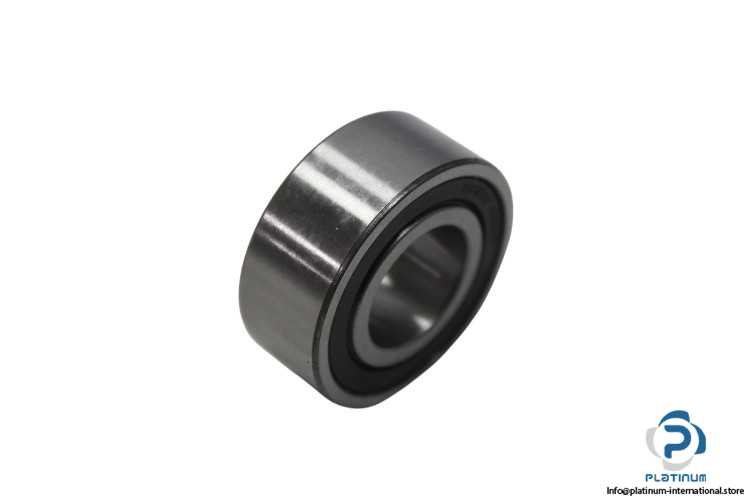

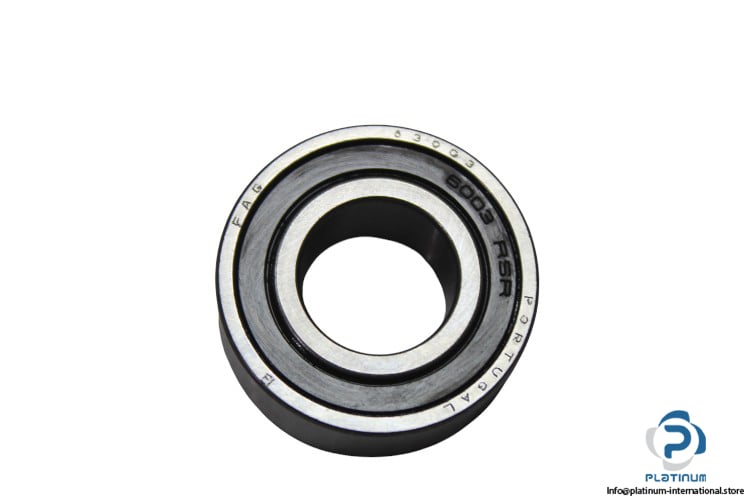

FAG 63003 2RSR Deep Groove Ball Bearing
New
In stock1 unitReady to ship
Deep Groove Ball Bearing
FAG 63003 2RSR Deep Groove Ball Bearing features a 17 mm bore diameter, 35 mm outer diameter, and 14 mm width. It offers dynamic load rating of 6,200 N and sealing on both sides for enhanced protection and performance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG Deep Groove Ball Bearing 63003 2RSR
The FAG 63003 2RSR Deep Groove Ball Bearing is designed for high-performance applications requiring smooth and efficient operation. It offers durability, high dynamic load capacity, and sealing on both sides for protection against contaminants.
Manufacturer: FAG
Model: 63003 2RSR
Type: Deep Groove Ball Bearing
| Bore Diameter (d) | 17 mm |
| Outer Diameter (D) | 35 mm |
| Width (B) | 14 mm |
| Dynamic Load Rating (Cr) | 6,200 N |
| Static Load Rating (C0r) | 3,250 N |
| Fatigue Load Limit | 207 N |
| Limiting Speed | 11,700 1/min |
| Cage | Steel Sheet Metal |
| Sealing | 2RSR, Seal on Both Sides |
