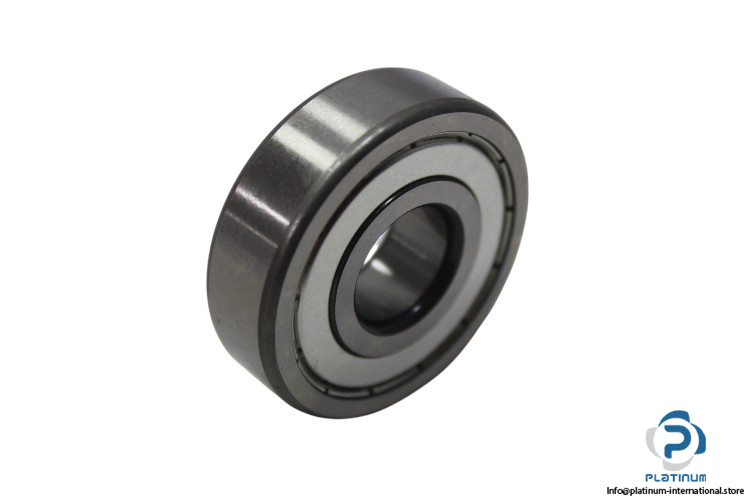

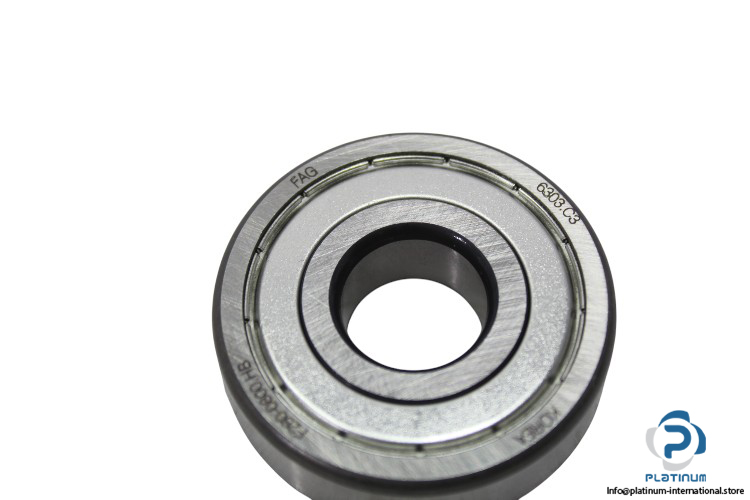

FAG 6303.2Z.C3 Deep Groove Ball Bearing
New
In stock1 unitReady to ship
Deep Groove Ball Bearing
FAG 6303.2Z.C3 Deep Groove Ball Bearing features a 17 mm bore diameter and 47 mm outer diameter. It offers a high dynamic load capacity of 14400 N and speeds up to 18,900 1/min, ideal for high-performance applications with shielded sealing and C3 clearance.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG 6303.2Z.C3 Deep Groove Ball Bearing
The FAG 6303.2Z.C3 Deep Groove Ball Bearing is designed for smooth and efficient rotation with high dynamic load capacity. It is ideal for high-speed and high-performance applications requiring durability and reliability.
Manufacturer: FAG
Type: Deep Groove Ball Bearing
Model: 6303.2Z.C3
| Bore Diameter (d) | 17 mm |
| Outer Diameter (D) | 47 mm |
| Width (B) | 14 mm |
| Dynamic Load Rating (Cr) | 14400 N |
| Static Load Rating (C0r) | 6500 N |
| Fatigue Load Limit | 435 N |
| Limiting Speed | 18,900 1/min |
| Reference Speed | 15,900 1/min |
| Cage | Steel sheet metal |
| Sealing | 2Z, Shielded on both sides |
| Clearance | C3 |
