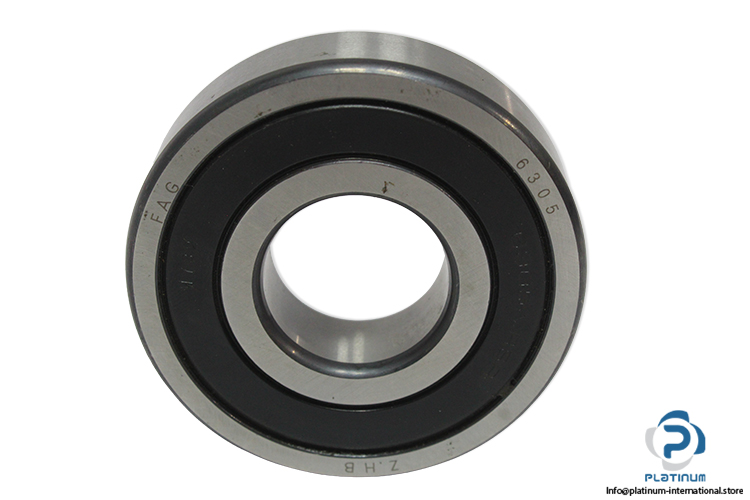

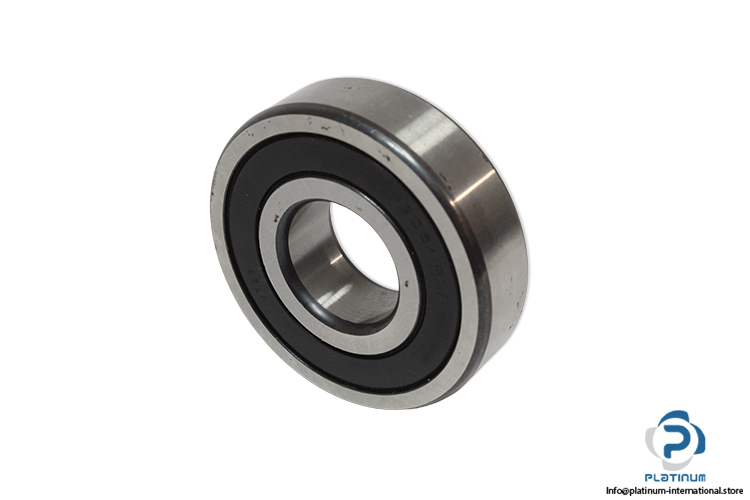

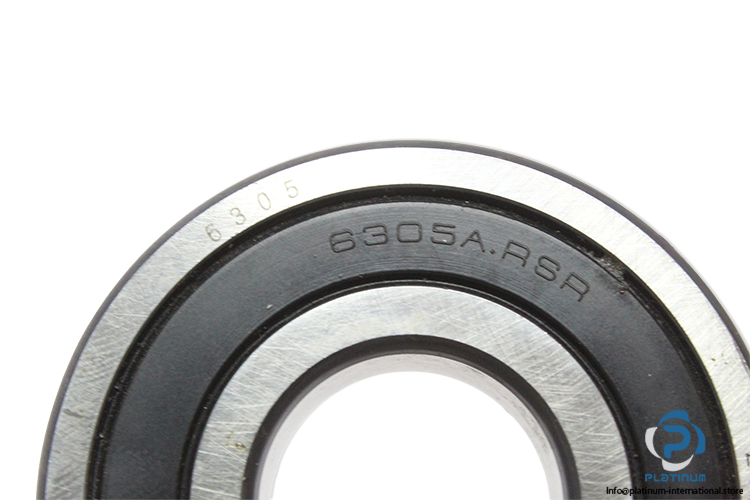

FAG 6305A.2RSR Deep Groove Ball Bearing
FAG 6305A.2RSR single row deep groove ball bearing with 25 mm bore diameter, double contact seals, steel cage, and high radial load capacity for industrial applications.
FAG 6305A.2RSR Deep Groove Ball Bearing
The FAG 6305A.2RSR is a single row deep groove ball bearing designed for reliable radial load handling and long service life in industrial applications. It features contact seals on both sides to protect against contaminants and ensure consistent performance.
Manufacturer: FAG
Type: Single Row Deep Groove Ball Bearing
Model: 6305A.2RSR
For optimal system performance, this bearing can be paired with precision drive components such as servo motors available in our Servo Motors category.
Please contact us via Ask for assistance with any inquiries.
| Bore Diameter (d) | 25 mm |
| Outer Diameter (D) | 47 mm |
| Width | 16 mm |
| Minimum Chamfer Dimension | 0.6 mm |
| Basic Dynamic Load Rating (Radial) | 10,400 N |
| Basic Static Load Rating (Radial) | 5,800 N |
| Fatigue Limit Load | 365 N |
| Limiting Speed | 8,500 1/min |
| Cage Material | Steel Sheet Metal |
| Sealing | 2RSR “ Contact Seal On Both Sides |
| Internal Design | A, Design Variant |
| Operating Temperature Range | -20 to 100 °C |
