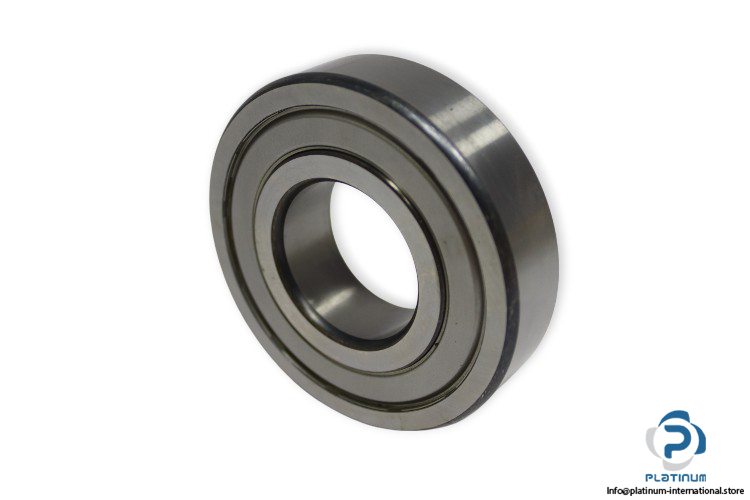

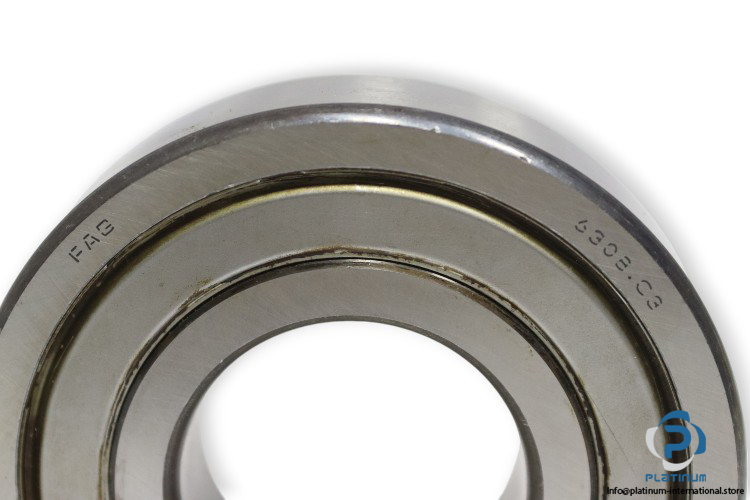

FAG 6308.2ZC3 Deep Groove Ball Bearing

Manufacturer: FAG Schaeffler
Type: Single Row Deep Groove Ball Bearing
Model: 6308-2Z-C3

Dimensions:
Bore Diameter d: 40 mm
Outer Diameter D: 90 mm
Bearing Width B: 23 mm
Basic dynamic load rating, radial: 45,500 N
Basic static load rating, radial: 25,000 N
Fatigue load limit, radial: 1,690 N
Limiting speed: 9,100 1/min
Reference speed: 9,000 1/min
Radial Clearance: C3 Internal clearance larger than CN
Sealing: Non-contact shield on both sides
Cage: steel sheet metal
