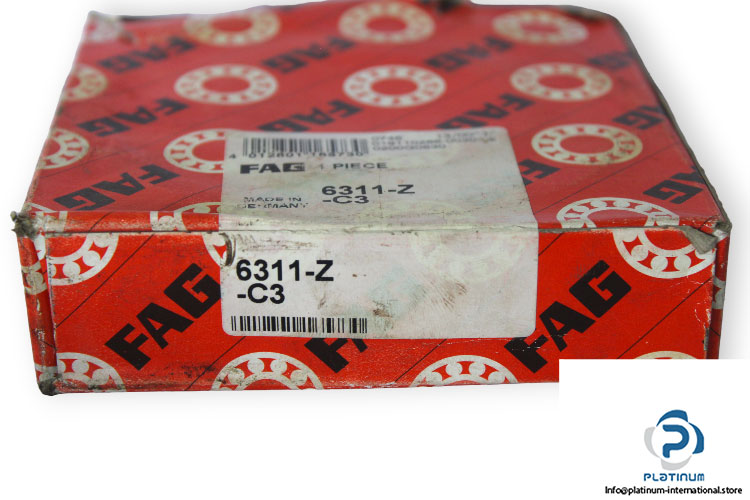

FAG 6311-Z-C3 Deep Groove Ball Bearing

Manufacturer: Schaeffler FAG
Type: Deep Groove Ball Bearing
Model: 6311-Z.C3
Replaces: 6311ZR.C3

Dimensions
Bore Diameter d: 55 mm
Outer diameter D: 120 mm
Width B: 29 mm
Dynamic C_r: 83000 N
Static C_0r: 47500 N
Fatigue load limit: 3250 N
Limiting speed: 8500 rpm
Reference speed: 7100 rpm
Cage: steel sheet metal
Sealing: Non-contact shield on one side
Radial internal clearance: C3
