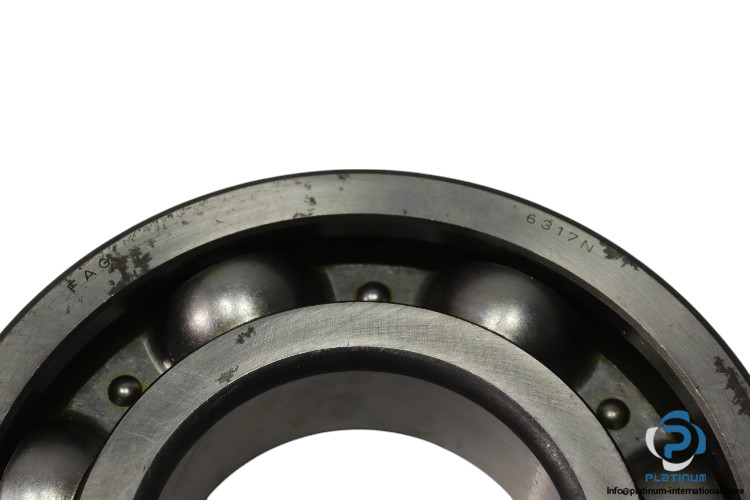

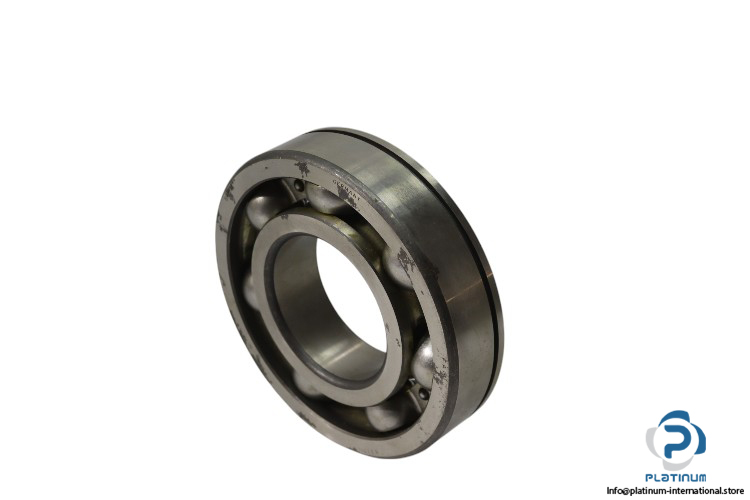

FAG 6317 N Deep Groove Ball Bearing
Used
In stock3 unitsReady to ship
Deep Groove Ball Bearing
The FAG 6317 N is a robust deep groove ball bearing featuring an 85 mm bore, 180 mm outer diameter, and a steel sheet metal cage. Built for high-speed and load-bearing applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG 6317 N Deep Groove Ball Bearing
The FAG 6317 N Deep Groove Ball Bearing is a high-quality component designed to support both radial and axial loads at high speeds. Built with a durable steel sheet metal cage, this bearing ensures smooth operation and reliability in a wide range of industrial applications.
Manufacturer: FAG
Type: Deep Groove Ball Bearing
Model: 6317 N
| Bore Diameter (d) | 85 mm |
| Outer Diameter (D) | 180 mm |
| Width (B) | 41 mm |
| Dynamic Load Rating (Cr) | 141,000 N |
| Static Load Rating (C0r) | 97,000 N |
| Fatigue Load Limit, Radial | 6,000 N |
| Limiting Speed | 5,000 1/min |
| Reference Speed | 5,300 1/min |
| Cage Type | Steel Sheet Metal |
