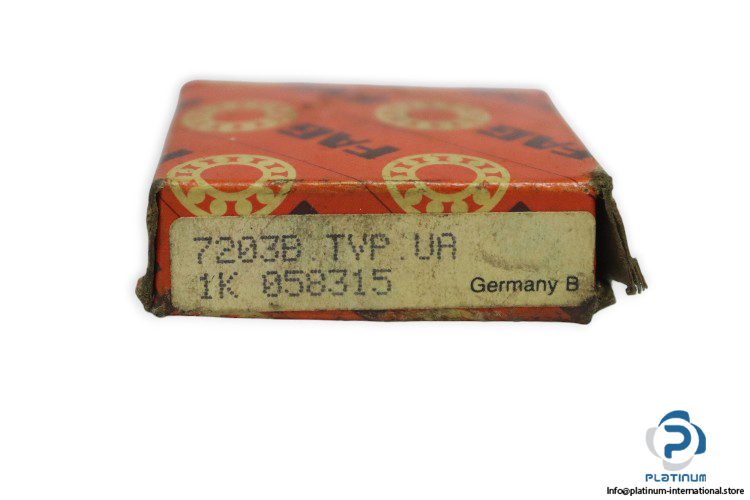

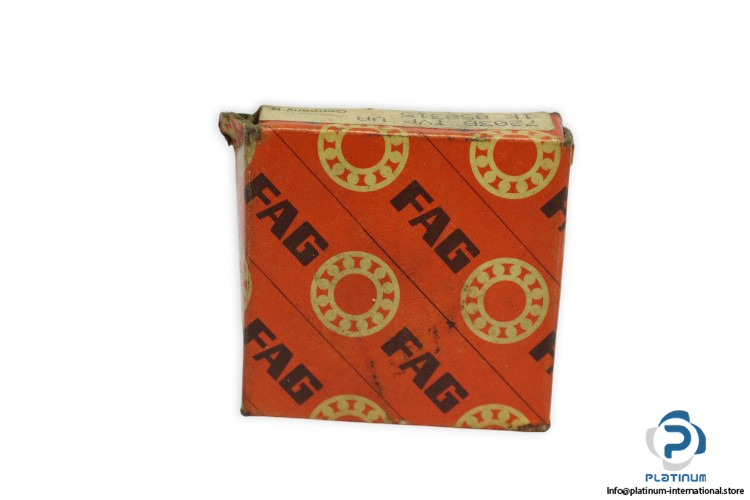

FAG 7203B.TVP.UA Angular Contact Ball Bearing

Manufacturer:  FAG
Type: ANGULAR CONTACT BALL BEARING
Model: 7203B-TVP-UA

Dimensions
Bore Diameter d: 17 mm
Outer diameter D: 40 mm
Width B: 12 mm
Contact angle α: 40 °
Basic load ratings:
Dynamic Cr: 11200 N
Static C0r: 5700 N
Fatigue load limit Cur: 395 N
Limiting speed: 26000 1/min
Reference speed: 17100 1/min
Cage: TVP, solid cage made of glass-fiber reinforced polyamide PA66
Bearing with matched conditions for fitting in pairs: UA, bearing set with small axial internal clearance
Tolerance class: Class6 (P6), better than PN
Design variant: B
