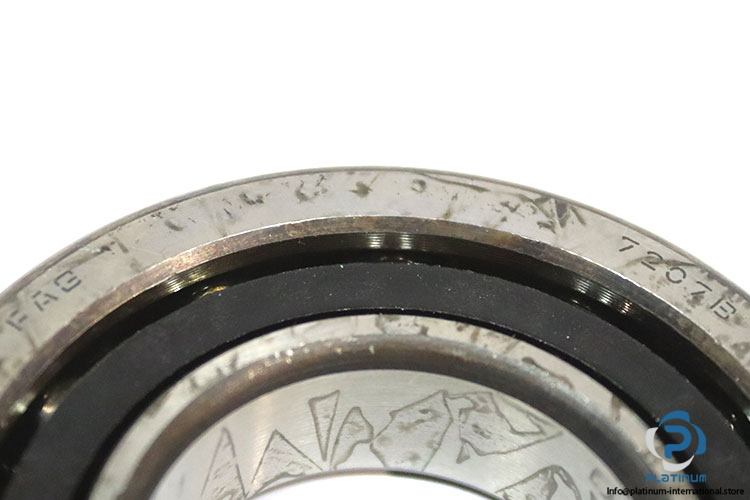

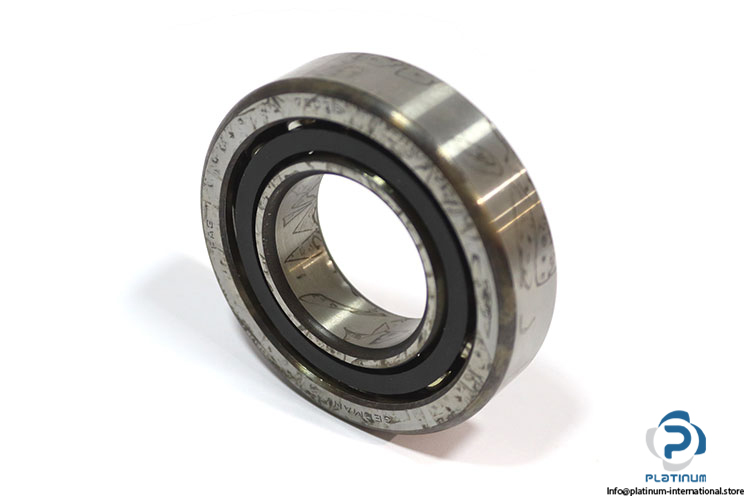

FAG 7207B TVP Angular Contact Ball Bearing
Used
In stock1 unitReady to ship
Angular Contact Ball Bearing
Single row FAG angular contact ball bearing with 40° contact angle, reinforced polyamide cage, and high load capacity for industrial applications.
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG 7207B.TVP Angular Contact Ball Bearing
The FAG 7207B.TVP is a single row angular contact ball bearing designed to support combined radial and axial loads. It features a 40° contact angle and a reinforced polyamide cage, ensuring stable performance and reliable operation in demanding industrial applications.
Manufacturer: FAG
Type: Single Row Angular Contact Ball Bearing
Model: 7207B.TVP
| Bore Diameter | 35 mm |
| Outer Diameter | 72 mm |
| Width | 17 mm |
| Chamfer rmin | 1.1 mm |
| Contact Angle | 40° |
| Dynamic Load Rating (Cr) | 30,000 N |
| Static Load Rating (C0r) | 19,000 N |
| Fatigue Load Rating | 1,320 N |
| Limiting Speed | 13,400 1/min |
| Reference Speed | 9,600 1/min |
| Cage | TVP, solid cage made of glass-fiber reinforced polyamide PA66, ball guided |
| Design Variant | B |
