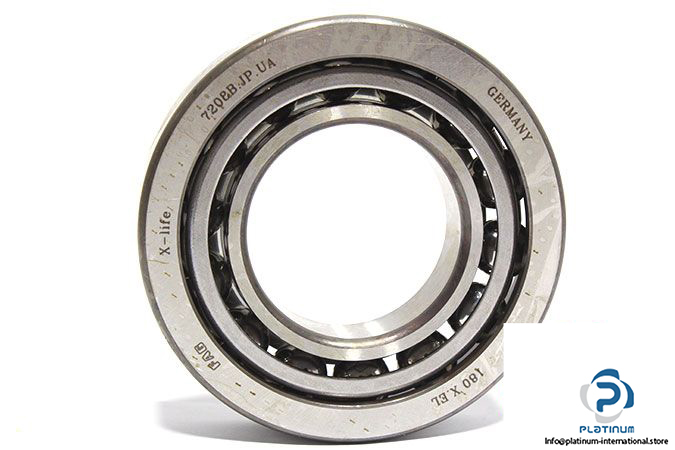

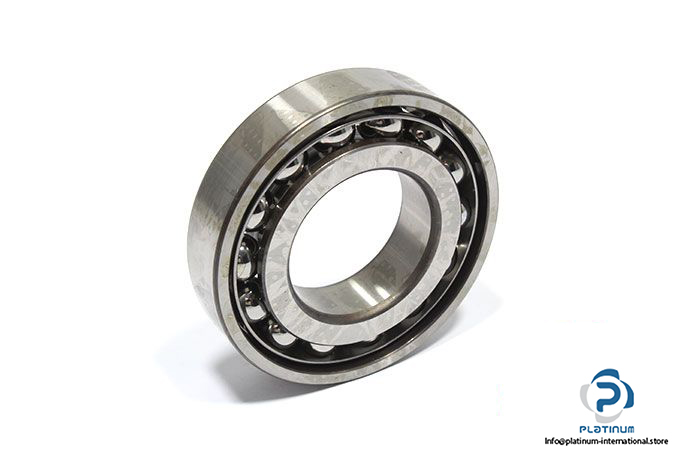

FAG 7208B.JP.UA Angular Contact Ball Bearing

Manufacturer: Schaeffler FAG

Type: Angular contact Ball Bearing

Part No: ‎7208B.JP.UA ‎

Replaces: 7208-B-XL-JP, 7208B.JP, 7208-B-JP

Bore Diameter: 40 mm

Outer diameter: 80 mm

Width: 18 mm

Chamfer r_min: 1.1 mm

Contact Angle: °

Basic load ratings:

Dynamic C_r: 36 kN

Static C_0r: 23.5 kN

Fatigue load rating: 1630 N

Limiting speed: 11900 rpm

Reference: 8,600 1/min

Cage: steel sheet metal

Weight: 0.4 kg
