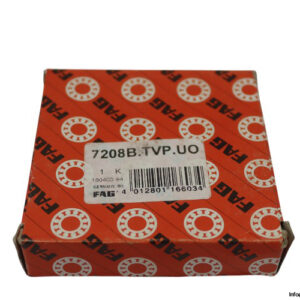

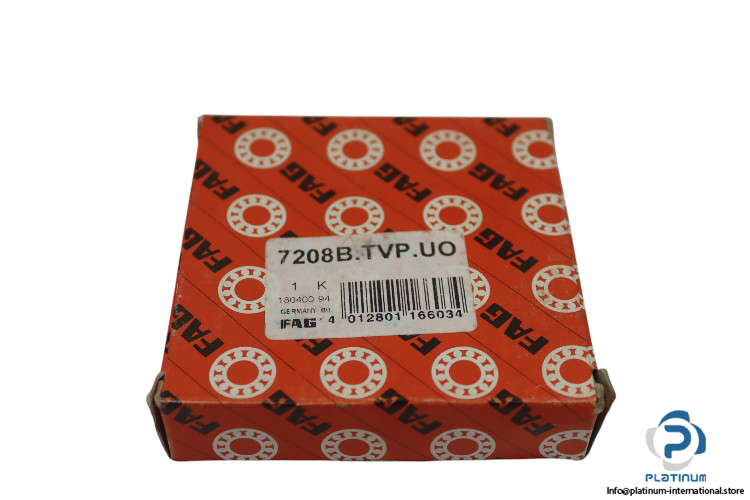

FAG 7208B.TVP.UO Angular Contact Ball Bearing
New
In stock4 unitsReady to ship
Angular Contact Ball Bearing
FAG 7208B.TVP.UO Angular Contact Ball Bearing with a 40 mm bore and 80 mm outer diameter, designed for high-speed applications with a 40° contact angle and dynamic load capacity of 36,000 N.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG 7208B.TVP.UO Angular Contact Ball Bearing
The FAG 7208B.TVP.UO Angular Contact Ball Bearing is designed for high-speed and high-precision applications. With a 40° contact angle and dynamic load capacity of 36,000 N, it is engineered for reliability in demanding environments.
Manufacturer: FAG
Type: Angular Contact Ball Bearing
Model: 7208B.TVP.UO
| Design | UO, Bearing set clearance-free in O or X arrangement |
| Bore Diameter | 40 mm |
| Outer Diameter | 80 mm |
| Width | 18 mm |
| Contact Angle | 40° |
| Dynamic Load Capacity (Cr) | 36,000 N |
| Static Load Capacity (C0r) | 23,500 N |
| Fatigue Load Rating | 1,630 N |
| Limiting Speed | 11,900 1/min |
| Reference Speed | 8,600 1/min |
| Cage | TVP; Solid cage made of glass-fiber reinforced polyamide PA66 |
