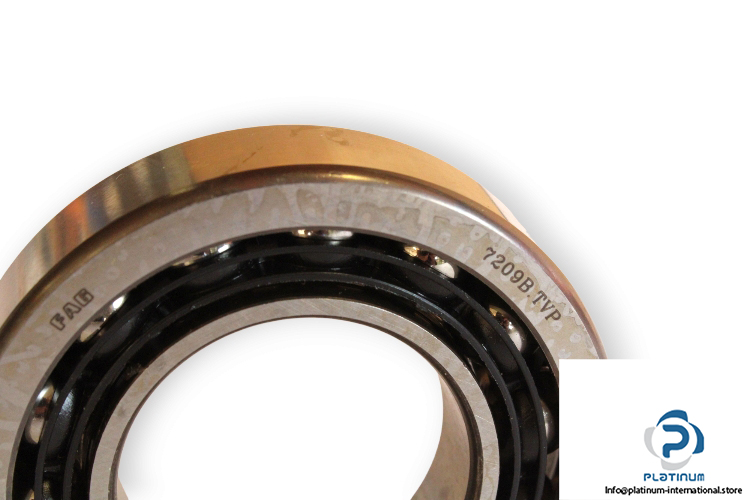

FAG 7209B.TVP Angular Contact Ball Bearing

Manufacturer: FAG

Type: Angular Contact Ball Bearing

Model: 7209 B.TVP

Replaces: 7209-B-XL-TVP, 7209-B-TVP

Dimensions

Bore Diameter d: 45 mm

Outer diameter D: 85 mm

Width B: 19 mm

Basic load ratings:

Dynamic C_r: 40000 N

Static C_0r: 27000 N

Fatigue load limit C_ur: 1870 N

Contact Angle: 40°

Limiting speed: 11000 rpm

Reference speed: 8000 rpm

Cage: TVP, solid cage made of glass-fiber reinforced polyamid PA66

Tolerance class: P6, Class6 (P6), better than PN
