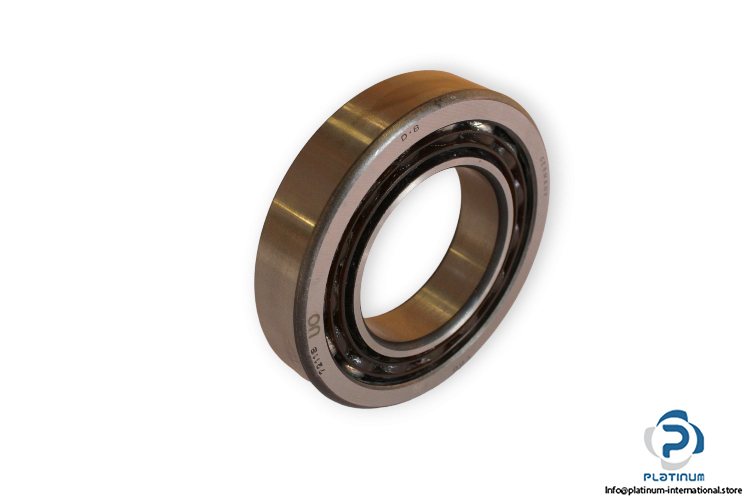

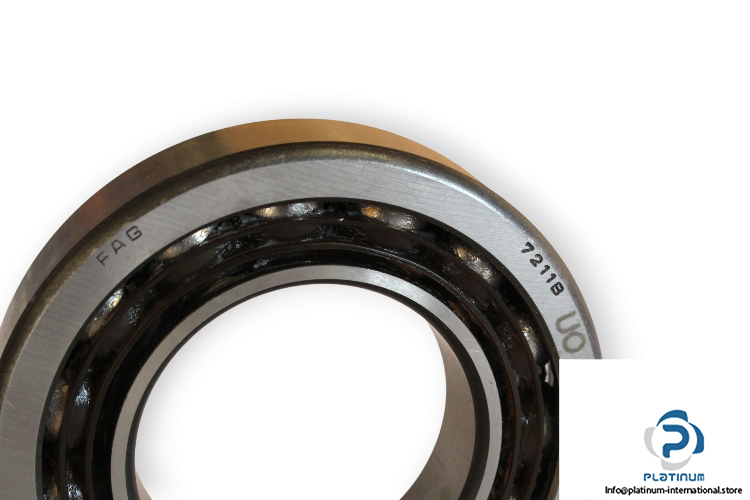

FAG 7211B.UO Angular Contact Ball Bearing

Manufacturer: FAG

Type: Angular Contact Ball Bearing

Model: 7211 B.UO



Dimensions

Bore Diameter d: 55 mm

Outer diameter D: 100 mm

Width B: 21 mm

Basic load ratings:

Dynamic C_r: 52000 N

Static C_0r: 38500 N

Fatigue load limit C_ur: 2650 N

Contact Angle: 40°

Limiting speed: 9200 rpm

Reference speed: 6800 rpm

Bearing with matched conditions for fitting in pairs: UO, bearing set clearance-free in O or X arrangement

Cage: steel sheet metal

Tolerance class:P6, Class6 (P6), better than PN
