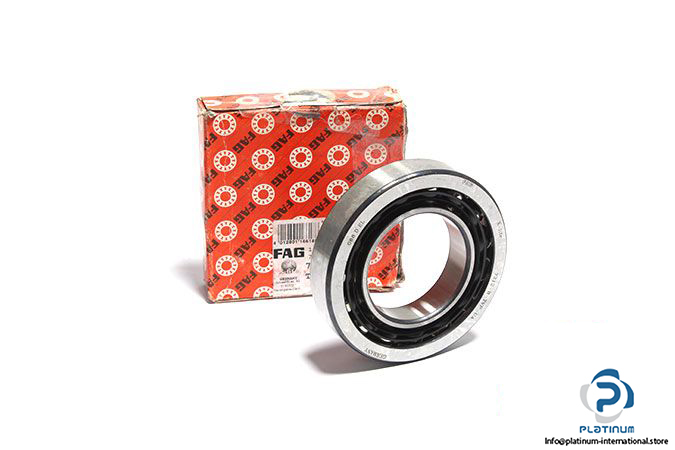

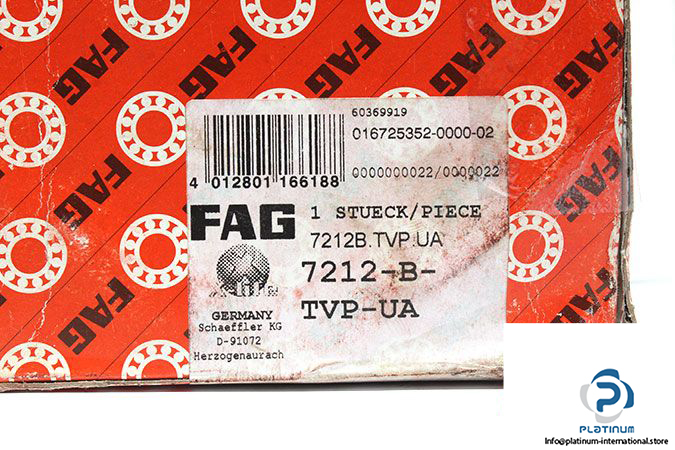

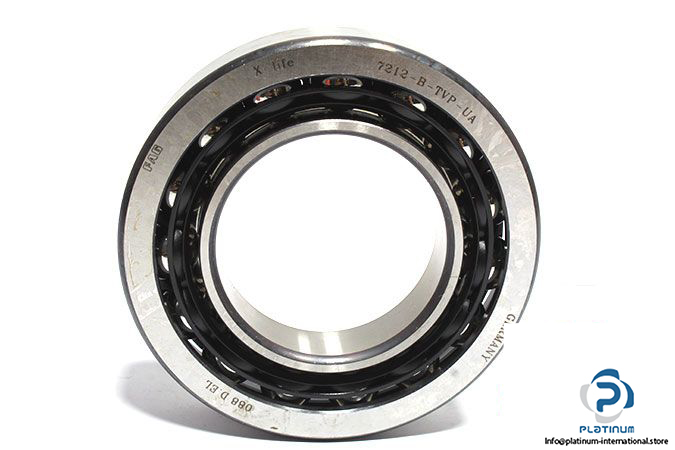

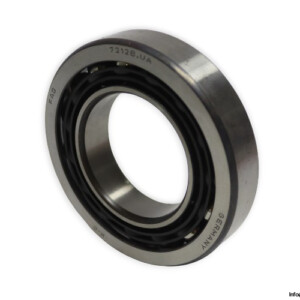

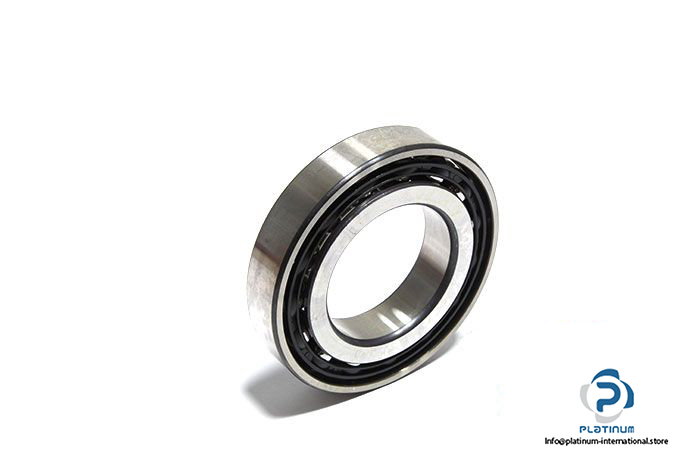

FAG 7212-B-TVP-UA Angular Contact Ball Bearing

Manufacturer: Schaeffler FAG

Type: Angular contact Ball Bearing

Model: 7212 B TVP UA

Replaces: 7212-B-XL-TVP, 7212B.TVP

Part No: 7212

Bore Diameter d: 60 mm

Outer diameter D: 110 mm

Width B: 22 mm

Chamfer r_min: 1.5 mm

Contact Angle: 40°

Basic load ratings:

Dynamic C_r: 62000 N

Static C_0r: 45000 N

Fatigue load rating: 3150 N

Limiting speed: 8300 rpm

Reference speed: 6200 rpm

Cage: solid cage made of glass-fiber reinforced polyamid PA66, ball guided

Operating temperature: -30 … +120 °C

Weight: 0.88 kg
