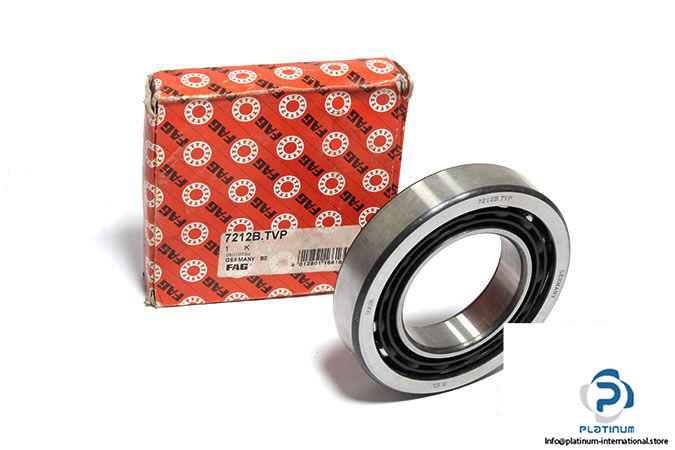

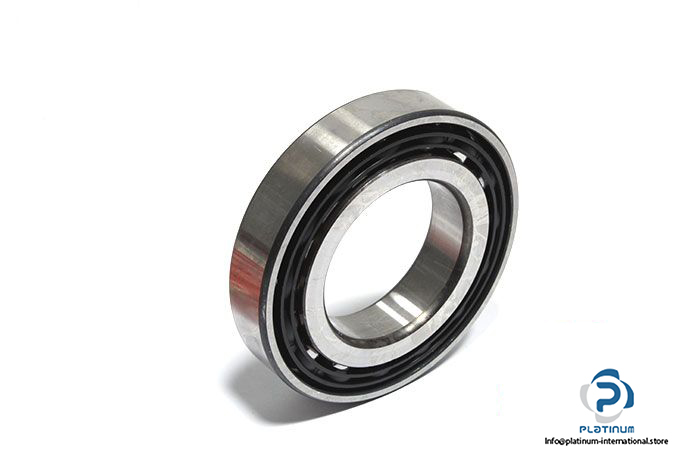

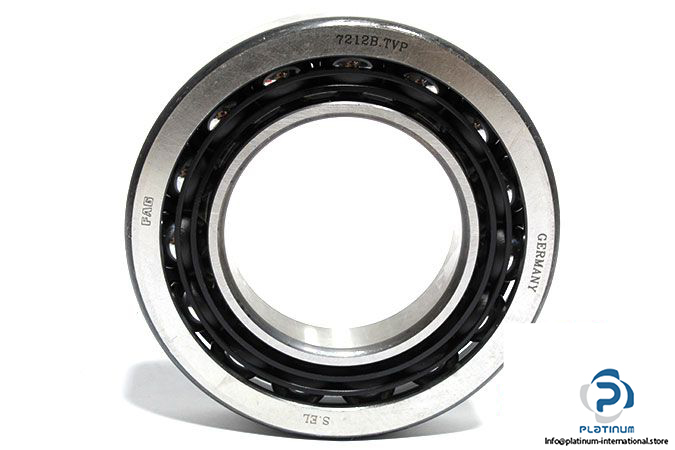

FAG 7212B.TVP Angular Contact Ball Bearing

Manufacturer: Schaeffler FAG

Type: Angular contact Ball Bearing

Model: 7212B.TVP

Replaces: 7212-B-XL-TVP, 7212-B-TVP

Part No: 7212

Bore Diameter: 60 mm

Outer diameter: 110 mm

Width: 22 mm

Chamfer r_min: 1.5 mm

Contact Angle: 40°

Basic load ratings:

Dynamic C_r: 62 kN

Static C_0r: 45 kN

Fatigue load rating: 3.15 N

Limiting speed: 10800 rpm

Cage: solid cage made of glass-fiber reinforced polyamid PA66, ball guided

Weight: 0.88 kg
