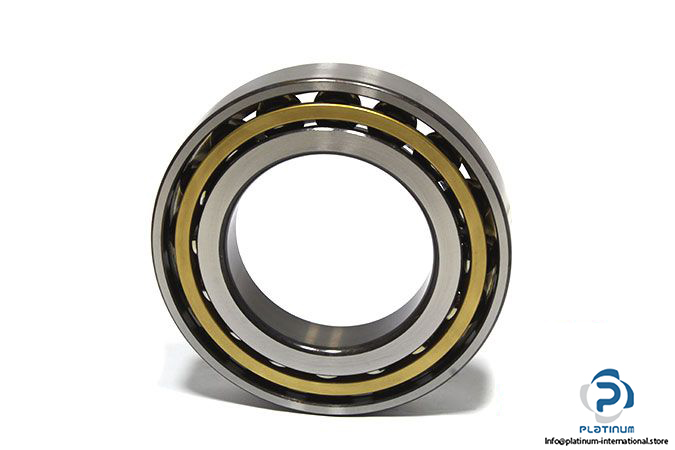

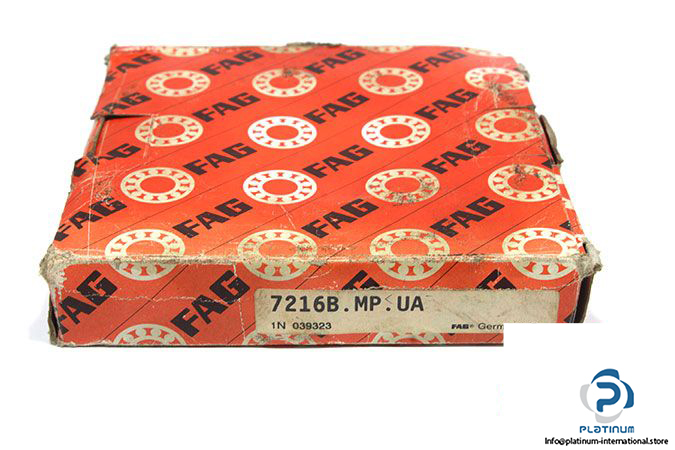

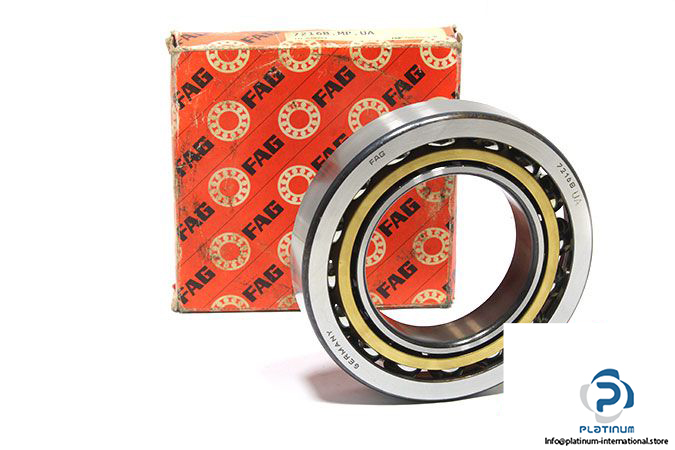

FAG 7216B.MP.UA Angular Contact Ball Bearing

Manufacturer: Schaeffler FAG

Type: Angular contact Ball Bearing

Part No: 7216-B-XL-MP

Bore Diameter: 80 mm

Outer diameter: 140 mm

Width B: 26 mm

Chamfer r_min: 2 mm

Contact Angle: 40°

Basic load ratings:

Dynamic C_r: 85 kN

Static C_0r: 72 kN

Fatigue load rating: 4.8 kN

Limiting speed: 8300 rpm

Reference Speed: 4950 rpm

Cage: MP; Machined brass

Weight: 1.6 kg
