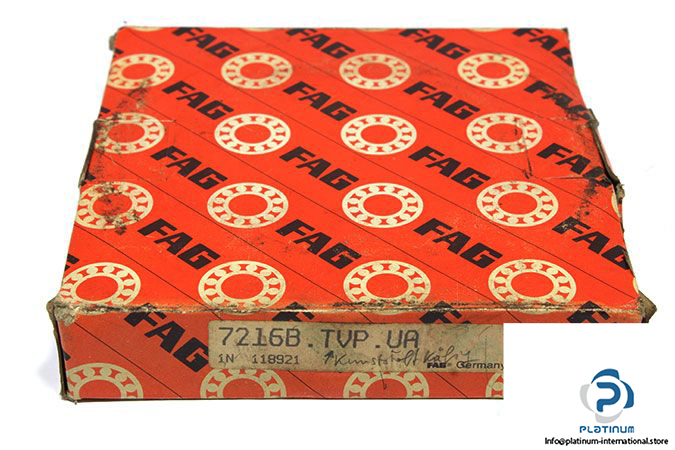

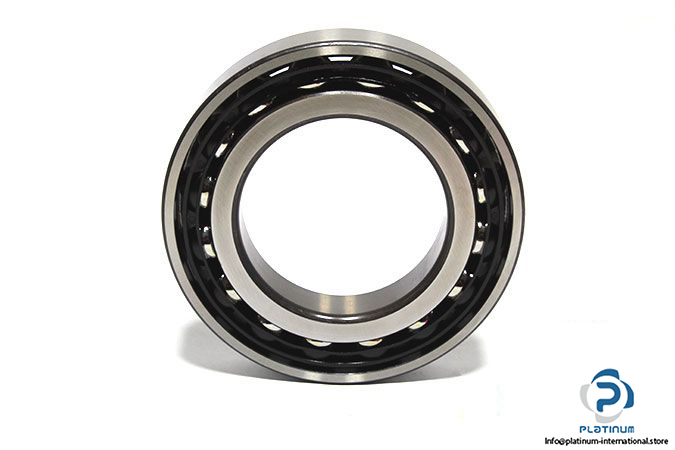

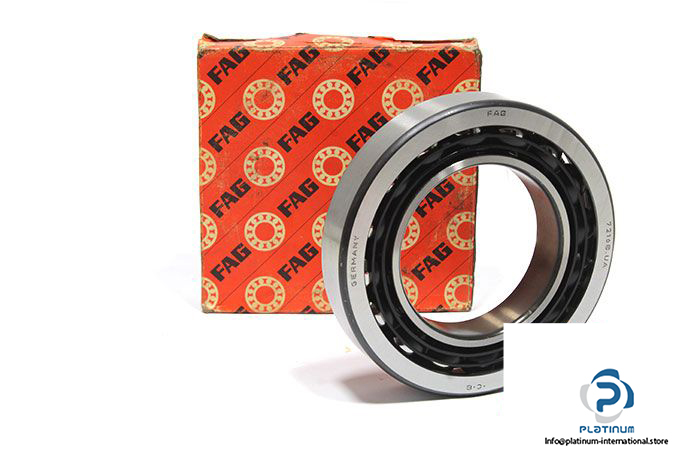

FAG 7216B.TVP.UA Angular Contact Ball Bearing

Manufacturer: Schaeffler FAG

Type: Angular contact Ball Bearing

Part No: 7216-B-XL-TVP

Bore Diameter: 80 mm

Outer diameter: 140 mm

Width: 26 mm

Chamfer r_min: 2 mm

Contact Angle: 40°

Basic load ratings:

Dynamic C_r: 85 kN

Static C_0r: 72 kN

Fatigue load rating: 4800 N

Limiting speed: 6400 rpm

Reference Speed: 4950 rpm

Weight:  1.4 kg
