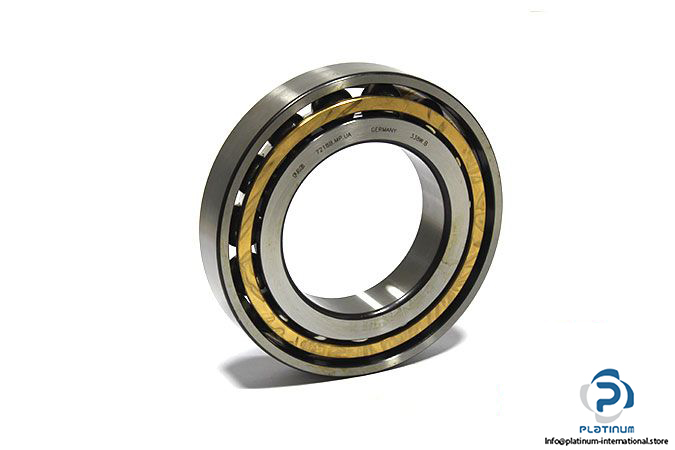

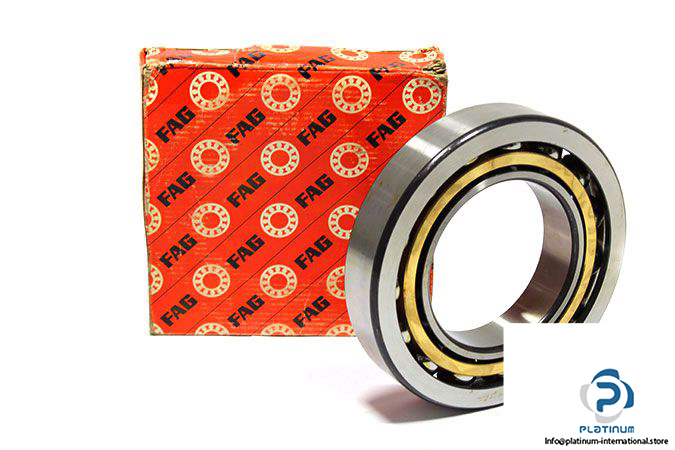

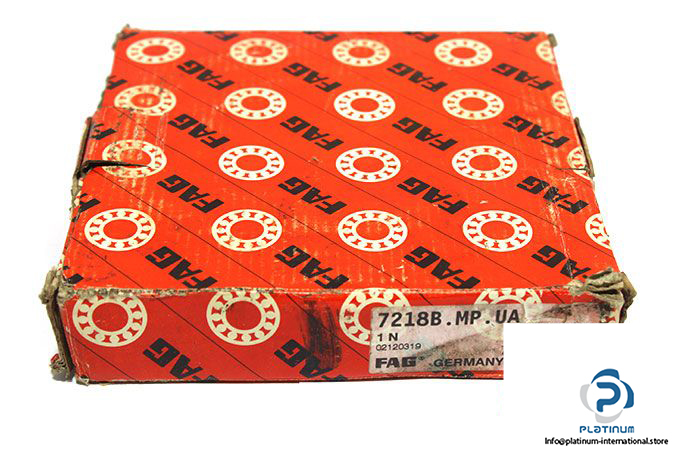

FAG 7218B.MP.UA Angular Contact Ball Bearing

Manufacturer: Schaeffler FAG

Type: Angular contact Ball Bearing

Part No: 7218B.MP.UA

Replaces: 7218-B-XL-MP, 7218-B-MP

Bore Diameter: 90 mm

Outer diameter: 160 mm

Width: 30 mm

Chamfer r_min: 2 mm

Contact Angle: 40°

Basic load ratings:

Dynamic C_r: 114 kN

Static C_0r: 98 kN

Fatigue load rating: 6.1 kN

Limiting speed: 7200 rpm

Reference Speed: 4550 rpm

Cage: Solid brass cage, ball guided

Weight: 2.4 kg
