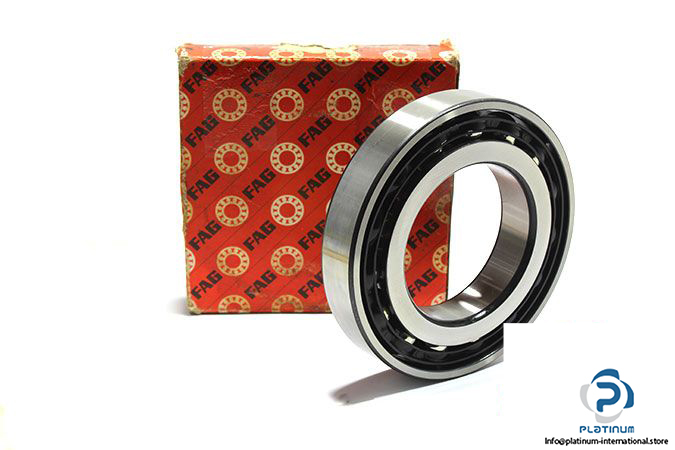

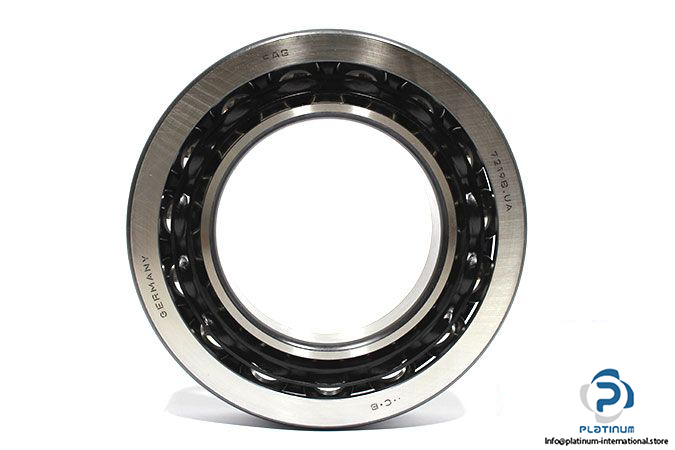

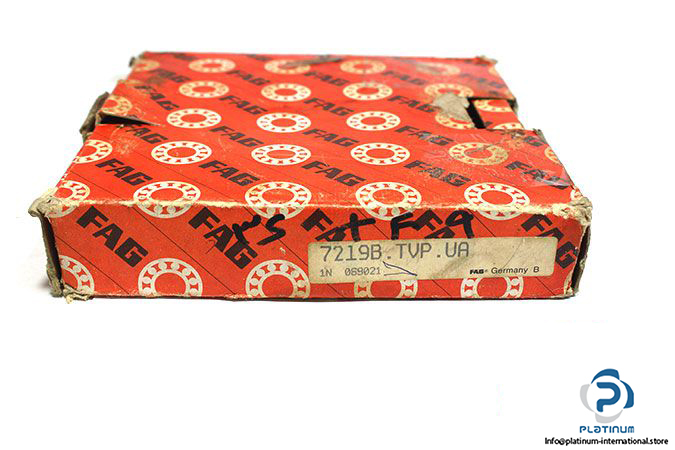

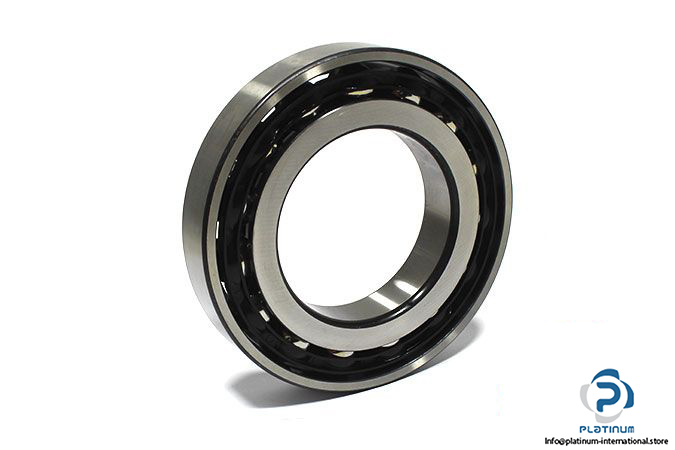

FAG 7219B.TVP.UA Angular Contact Ball Bearing
New
In stock3 unitsReady to ship
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Schaeffler FAG
Type: Angular contact Ball Bearing
Part No: 7219B.TVP.UA
Bore Diameter: 95 mm
Outer diameter: 170 mm
Width: 32 mm
Chamfer rmin: 107 mm
Contact Angle: 40°
Basic load ratings:
Dynamic Cr: 123 kN
Static C0r: 106 kN
Fatigue load rating: 6400 kN
Limiting speed: 5200 rpm
Reference Speed: 4450 rpm
Cage: solid cage made of glass-fiber reinforced polyamid PA66, ball guided
Tolerance class: PN
Weight: 2.6 kg
