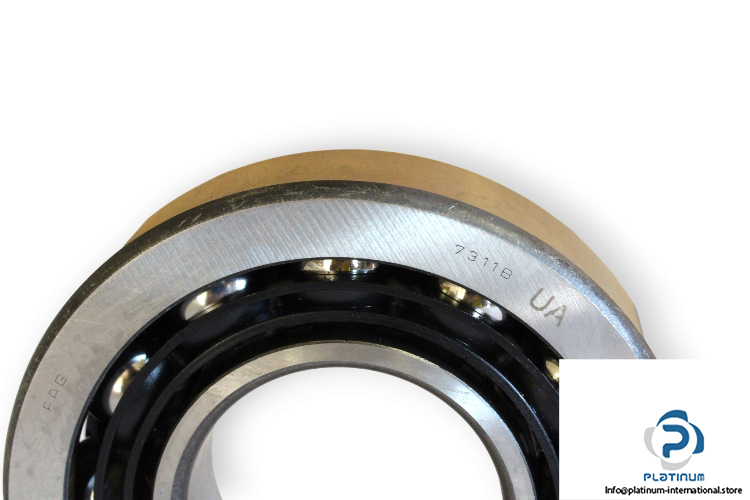

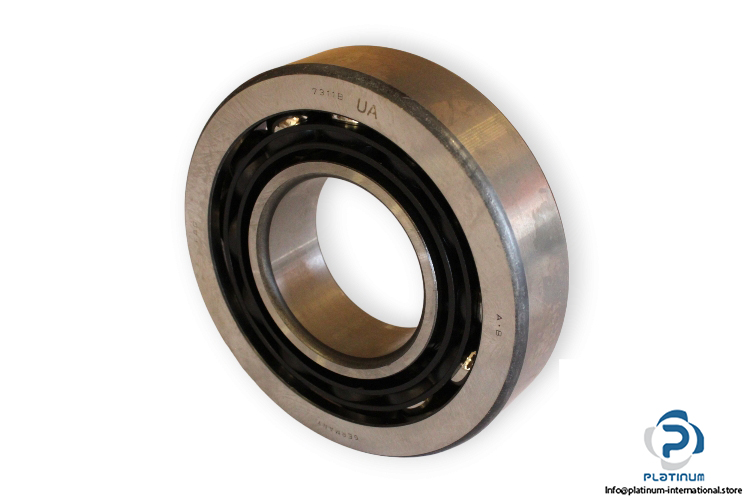

FAG 7311B.UA Angular Contact Ball Bearing

Manufacturer: FAG
Type: Angular Contact Ball Bearing
Model: 7311 B.UA

Dimensions
Bore Diameter d: 55 mm
Outer diameter D: 120 mm
Width B: 29 mm
Basic load ratings:
Dynamic C_r: 91000 N
Static C_0r: 61000 N
Fatigue load limit C_ur: 4250 N
Contact Angle: 40°
Limiting speed: 7700 rpm
Reference speed: 5600 rpm
Bearing with matched conditions for fitting in pairs: UA, bearing set with small axial internal clearance
Cage: solid cage made of glass-fiber reinforced polyamid PA66
