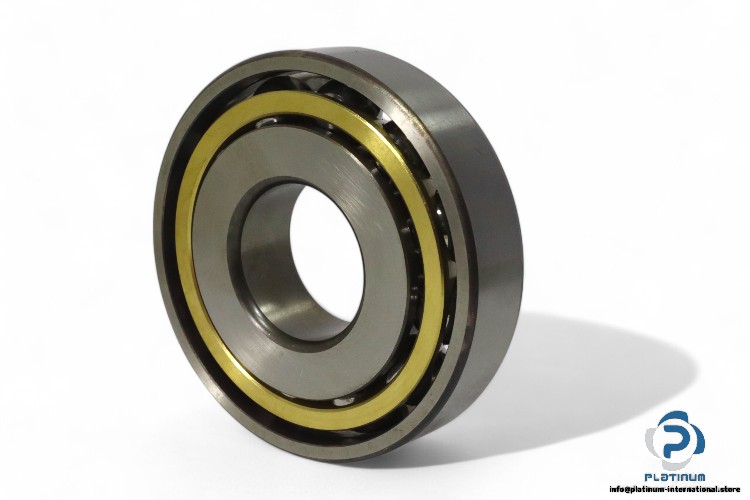

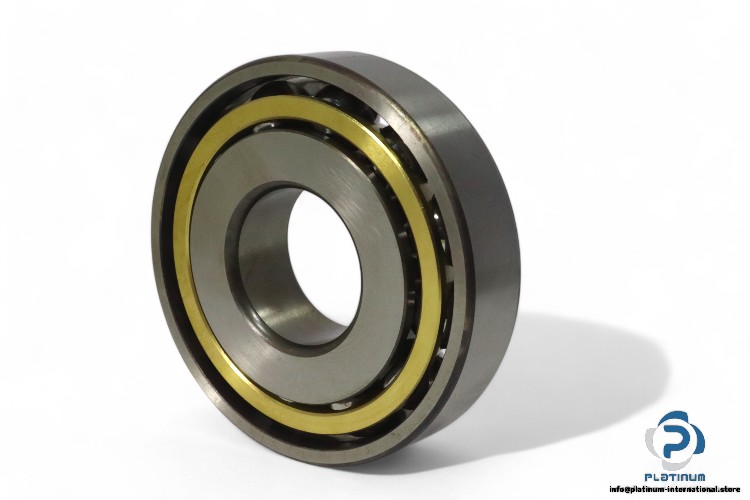

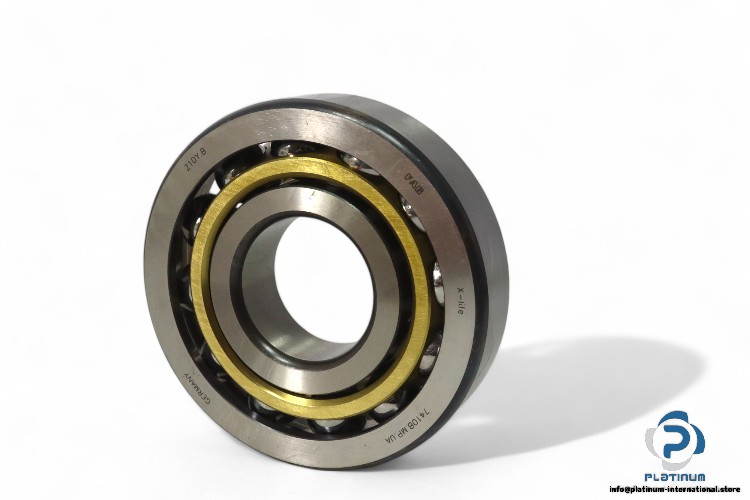

FAG 7410B.MP.UA Angular Contact Ball Bearing

Manufacturer: FAG
Type: ANGULAR CONTACT BALL BEARING
Model: 7410B-MP-UA

Dimensions
Bore Diameter d: 50 mm
Outer diameter D: 130 mm
Width B: 31 mm
Basic load ratings:
Dynamic C_r: 96000 N
Static C_0r: 69000 N
Fatigue load limit C_ur: 4750 N
Contact Angle: B, 40°
Limiting speed: 9200 1/min
Reference speed: 4400 1/min
Cage: MP, solid brass cage, ball guided
Suffix: UA, Universal Mounting, With O And X Configurations The Bearing Pair Has Small Axial Clearance
