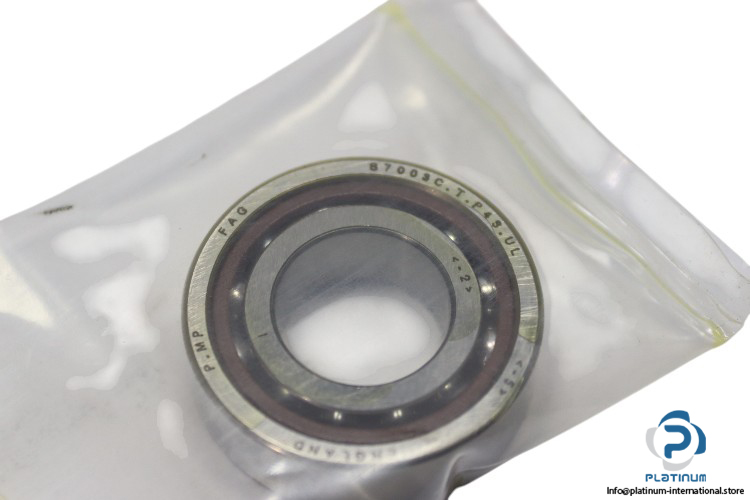

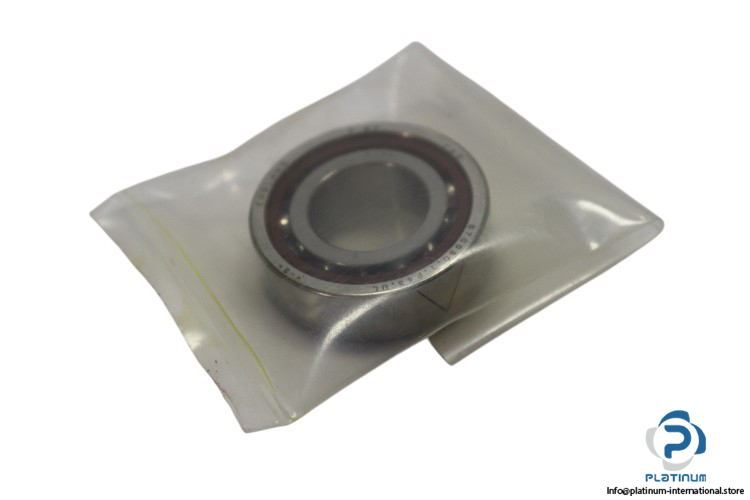

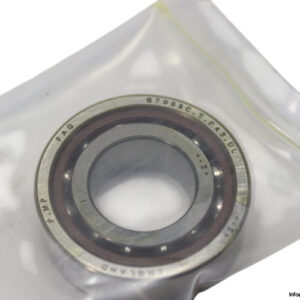

FAG B7003C.T.P4S.UL Spindle Bearing

In stock2 unitsReady to ship

Spindle Bearing

FAG B7003C.T.P4S.UL Spindle Bearing features a 17 mm bore diameter and 35 mm outer diameter, designed for high-speed spindle applications with a dynamic load capacity of 8,600 N and a limiting speed of 70,000 1/min for oil lubrication.

Manufacturer
FAG
SKU
1076574
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

FAG B7003C.T.P4S.UL Spindle Bearing

The FAG Spindle Bearing B7003C.T.P4S.UL is designed for high-speed spindle applications. With its precise tolerance class and high dynamic and static load capacities, it ensures optimal performance in demanding environments.

Manufacturer: FAG

Type: Spindle Bearing

Model: B7003C.T.P4S.UL

Bore Diameter17 mm
Outer Diameter35 mm
Width10 mm
Contact Angle15°
Dynamic Load Capacity (Cr)8,600 N
Static Load Capacity (C0r)3,500 N
Fatigue Limit Load (Cur)370 N
Limiting Speed (Grease Lubrication)45,000 1/min
Limiting Speed (Oil Lubrication)70,000 1/min
Tolerance ClassP4S
Bearing ArrangementU; Single Bearing Arrangement in any combination
PreloadL; Light
