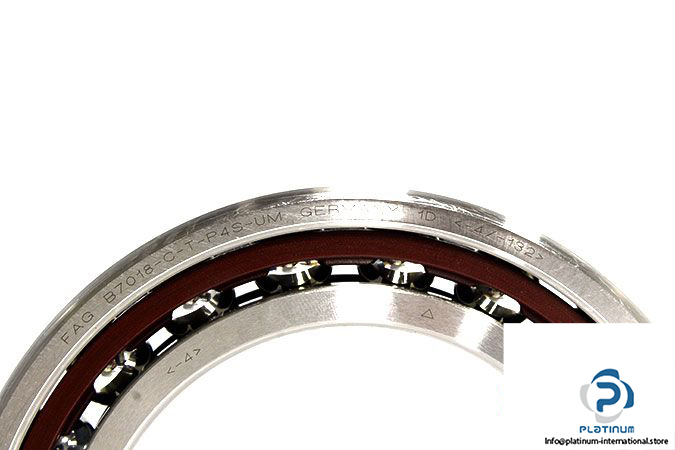

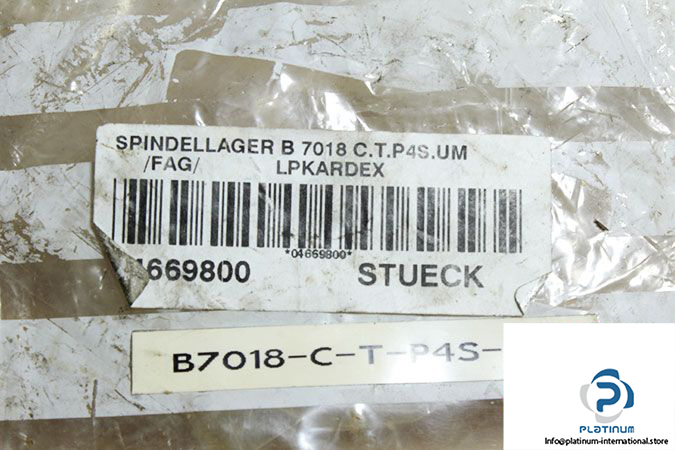

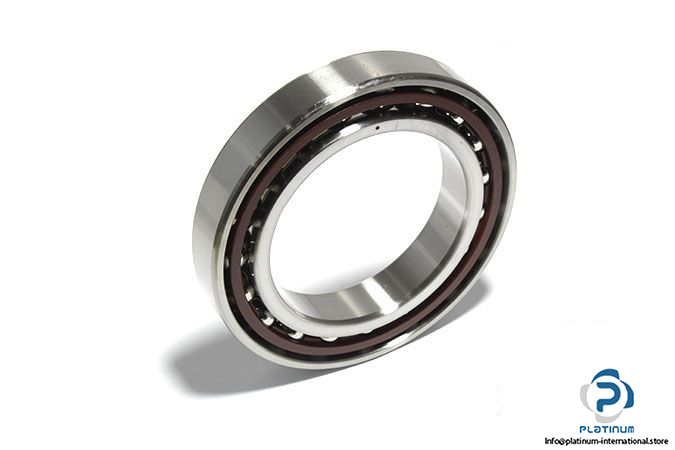

FAG B7018-C-T-P4S-UM Spindle Bearing
Manufacturer: Schaeffler FAG
Type: Angular contact ball bearing ( Spindle Bearing)
Part No: B7018-C-T-P4S-UM
Bore Diameter: 90 mm
Outer diameter: 140 mm
Width: 24 mm
Chamfer rmin: 1.5 mm
Contact Angel: 15°
Dynamic Cr: 76.5 kN
Static C0r: 72 kN
Fatigue limit load Cur: 4900 N
Limiting speed for grease lubrication: 9500 rpm
Limiting speed for oil lubrication: 16000 rpm
Accuracy: P4S
Bearing arrangement: U; Single bearing Arrangement in any combination
Preload: L; Light
Weight: 1.1 kg
