FAG B71904E.T.P4S.UL Angular Contact Ball Bearing

Name: FAG B71904E.T.P4S.UL ANGULAR CONTACT BALL BEARING
SKU: 1029372
Availability: LimitedAvailability

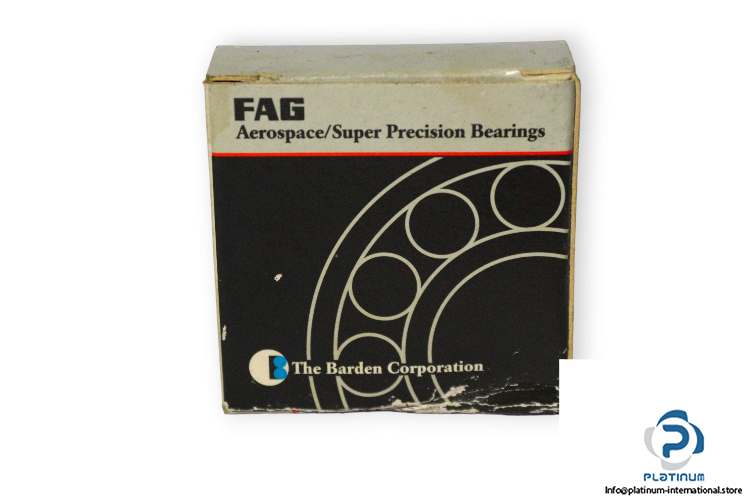

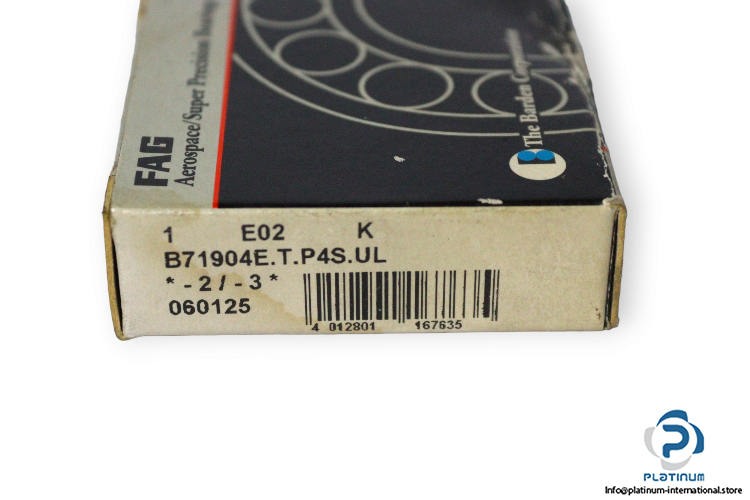

fag-B71904E.T.P4S.UL-angular-contact-ball-bearing-(new)-(carton)

fag-B71904E.T.P4S.UL-angular-contact-ball-bearing-(new)-(carton)-1

fag-B71905E.T.P4S.UL-angular-contact-ball-bearing-(new)-(carton)-2

New

In stock4 unitsReady to ship

Manufacturer: FAG Type: Angular contact ball bearing ( Spindle Bearing) Model: B 71904E.T.P4S.UL

Manufacturer

FAG

SKU

1029372

Category

Angular Contact

Condition

New

20 Angular Ball bearing bearings Contact Fag mm Schaeffler shaft spindle

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: FAG
Type: Angular contact ball bearing ( Spindle Bearing)
Model: B 71904E.T.P4S.UL

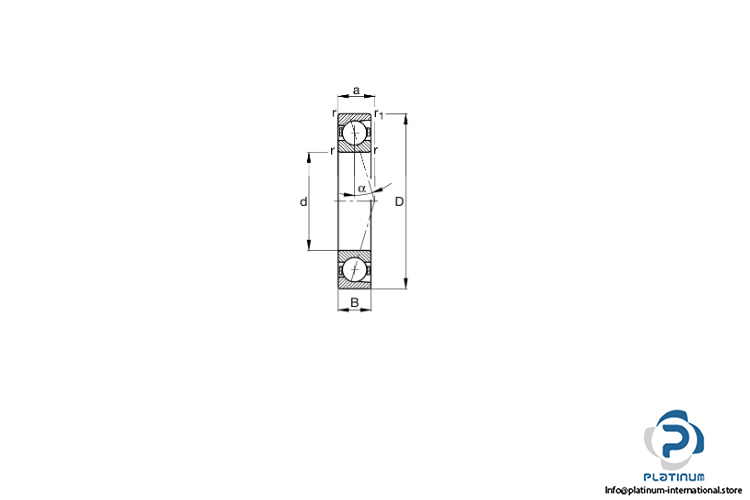

Dimensions
Bore Diameter d: 20 mm
Outer diameter: 37 mm
Width: 9 mm
Chamfer r_min: 0,3 mm
Contact Angel: E, 25°
Dynamic C_r: 7000 N
Static C_0r:3050 N
Fatigue limit load C_ur: 325 N
Limiting speed for grease lubrication: 38000 rpm
Limiting speed for oil lubrication: 60000 rpm
Cage: T, Laminated fabric cage
Accuracy: P4S
Bearing arrangement: U; Single bearing Arrangement in any combination
Preload: L; Light
