FAG H 209 Adapter Sleeve
New
In stock1 unitReady to ship
Adapter Sleeve
Adapter sleeve H209 with locknut KM9 and fuse MB9, designed for 40 mm bore and M45x1.5 thread. Ensures accurate bearing mounting and alignment in industrial applications.AdapterbearingbearingsComponentsEngineeringFagFuseH209IndustrialKM9LocknutMB9MechanicalMountingPrecisionSchaefflershaftsleeve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

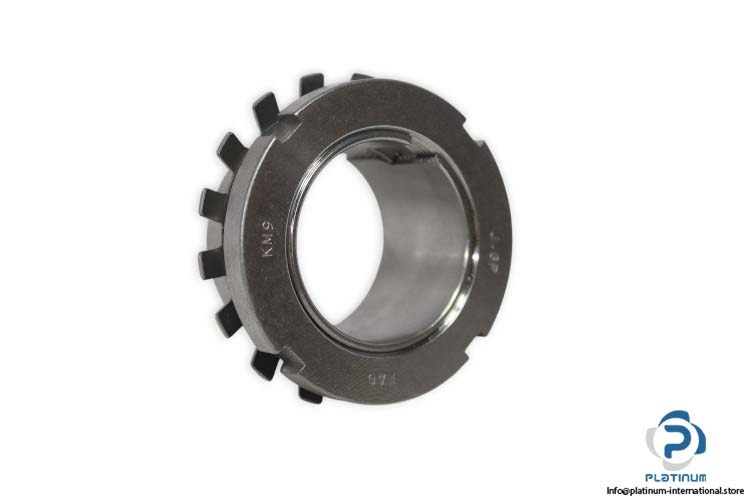

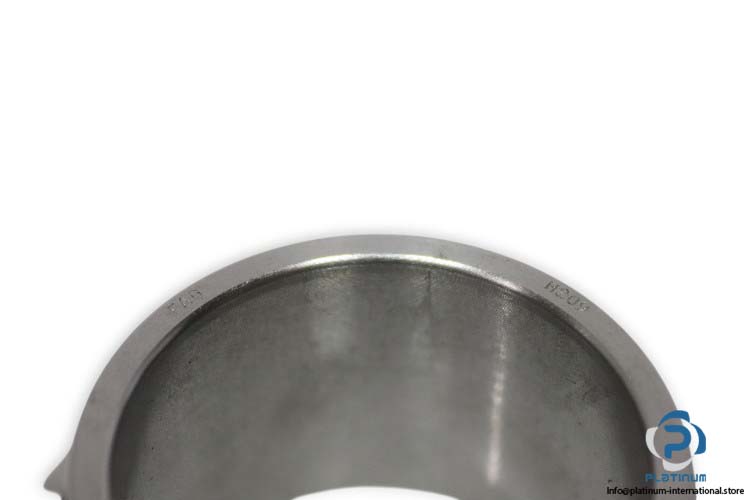

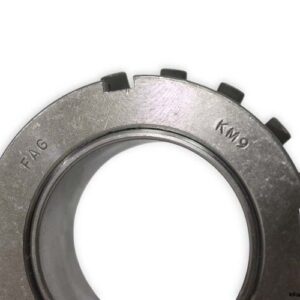

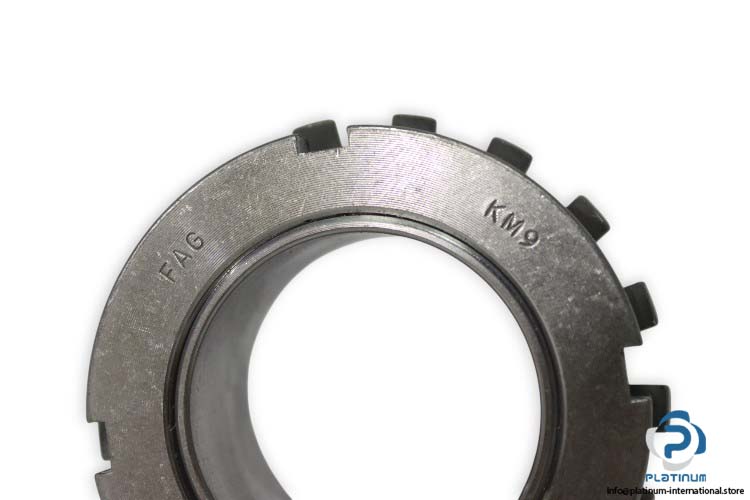

FAG / Schaeffler H209 Adapter Sleeve
The FAG / Schaeffler H209 adapter sleeve is designed for the secure mounting of bearings with a tapered bore onto cylindrical shafts, ensuring precise alignment and reliable operation in industrial applications.
Manufacturer: FAG / Schaeffler
Type: Adapter Sleeve
Model: H209
Locknut Model: KM9

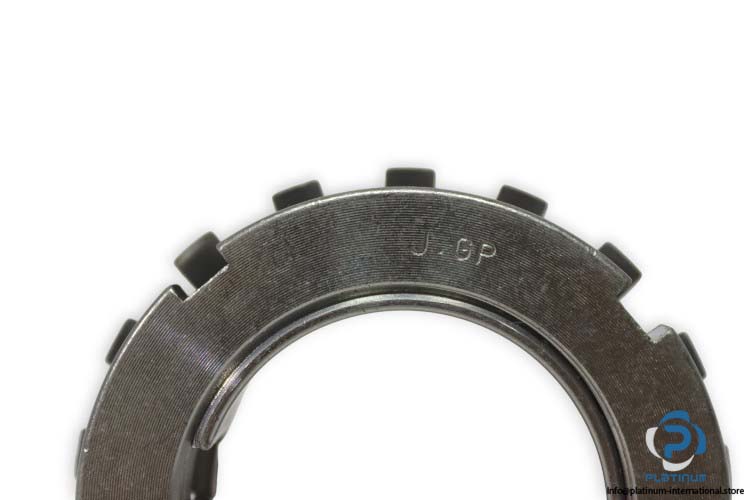

Code: J.GP
Fuse: MB9

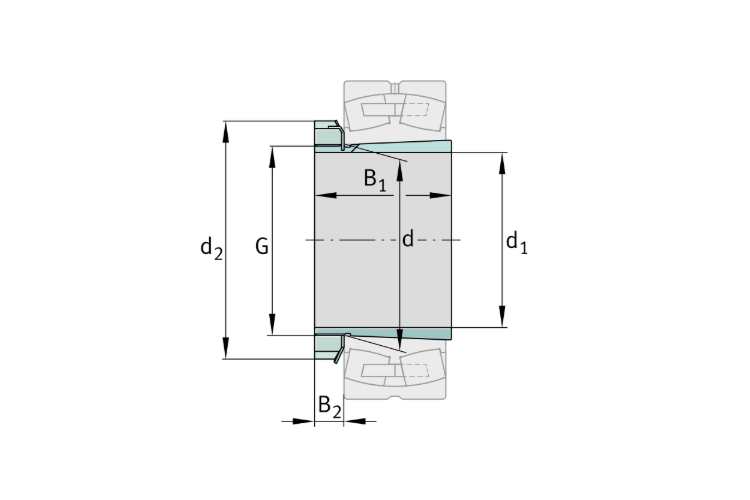

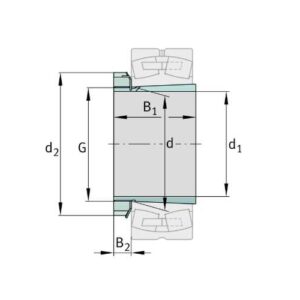

| Bore Diameter d1 | 40 mm |
| Sleeve Length B1 | 33 mm |
| Bore Diameter Bearing d | 45 mm |
| Outer Diameter Nut d2 | 65 mm |
| Width Nut and Lock B2 | 11.25 mm |
| Thread G | M45x1.5 |
| Taper | 1:12 |
