FAG H2322 Adapter Sleeve
Manufacturer: Schaeffler FAG
Type: Adapter sleeve H
Model: H 2322

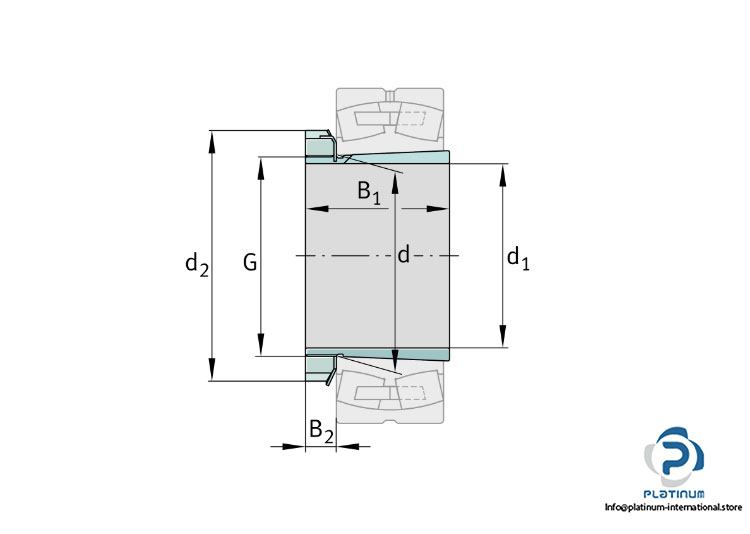

Dimensions:
Bore Diameter d1: 100 mm
Sleeve length B1: 105 mm
Bore diameter bearing d: 110 mm
Outer diameter nut d2: 145 mm
Width nut and lock B2: 20.75 mm
Thread G: M105x2
Taper: 1:12
Locknut: KM22
Lock washer: MB22
