FAG NA4922 Needle Roller Bearing
New
In stock1 unitReady to ship
Needle Roller Bearing
High-load FAG NA4922 needle roller bearing designed for compact applications, offering reliable performance, high load capacity, and efficient operation in industrial systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

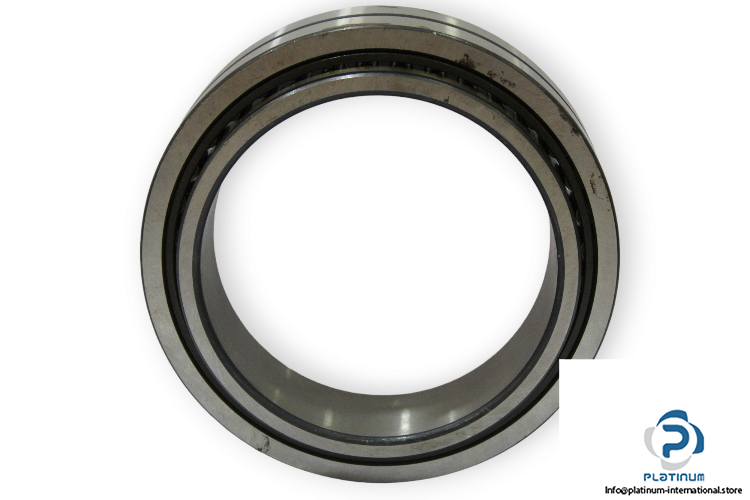

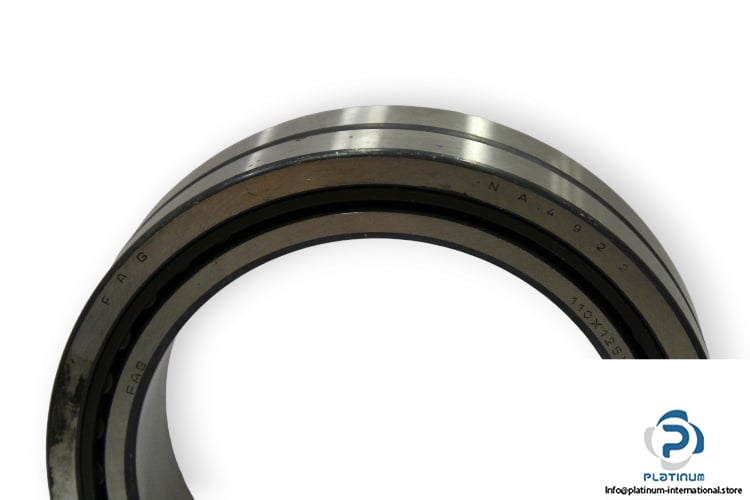

FAG NA4922 Needle Roller Bearing
The FAG NA4922 Needle Roller Bearing by Schaeffler is a high-performance bearing designed for applications requiring high load capacity and compact radial design. It ensures reliable operation, long service life, and efficient performance in demanding industrial environments.
Manufacturer: FAG / Schaeffler
Type: Needle Roller Bearing
Model: NA4922
Replaces: NA4922-XL
| Bore Diameter d | 110 mm |
| Outer Diameter D | 150 mm |
| Width B | 40 mm |
| Minimum Chamfer Dimension rmin | 1.1 mm |
| Dynamic Load Rating Cr | 149000 N |
| Static Load Rating C0r | 290000 N |
| Fatigue Load Limit Cur | 48000 N |
| Reference Speed | 2330 rpm |
| Limiting Speed | 3700 rpm |
| Operating Temperature | -30 / +120 °C |
| Recommendation | Ideal choice for high-load industrial applications where durability and compact design are essential. |
