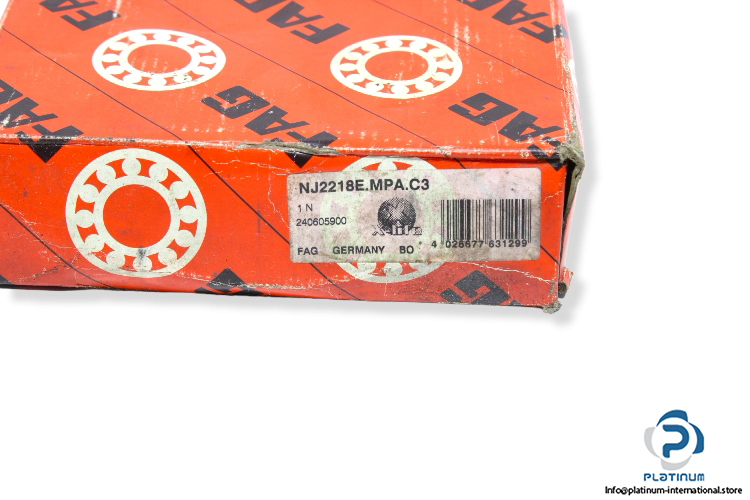

FAG NJ2218E.MPA.C3 Cylindrical Roller Bearing
New
In stock2 unitsReady to ship
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: FAG
Type: Cylindrical Roller Bearing
Model: NJ2218 E MPA C3
Replaces: NJ2218-E-XL-M1

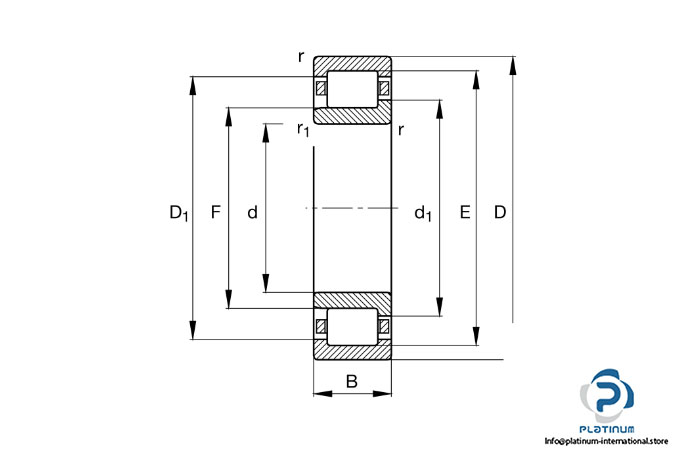

Dimensions:
Bore Diameter d: 90 mm
Outer diameter D: 160 mm
Width B: 40 mm
Basic load ratings, radial:
Dynamic Cr: 285000 N
Static C0r: 315000 N
Fatigue load rating, radial: 56000 N
Limiting speed: 7800 rpm
Reference speed: 3250 rpm
Clearance: C3
Cage: MPA, Solid brass cage
Operating temperature: -30 … +150 °C
