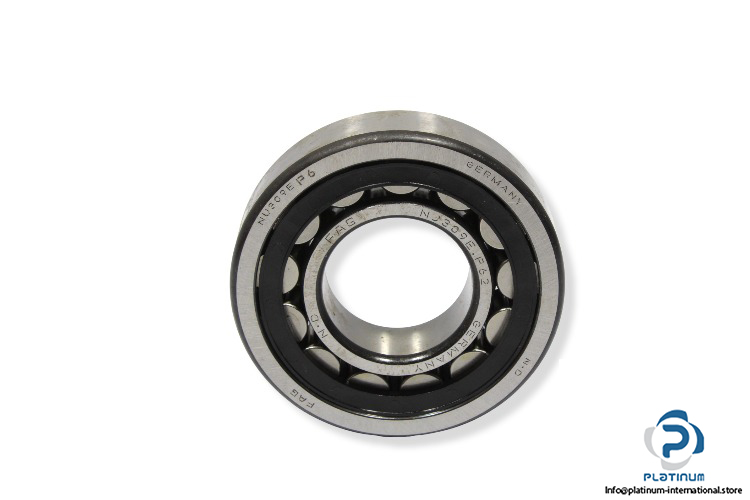

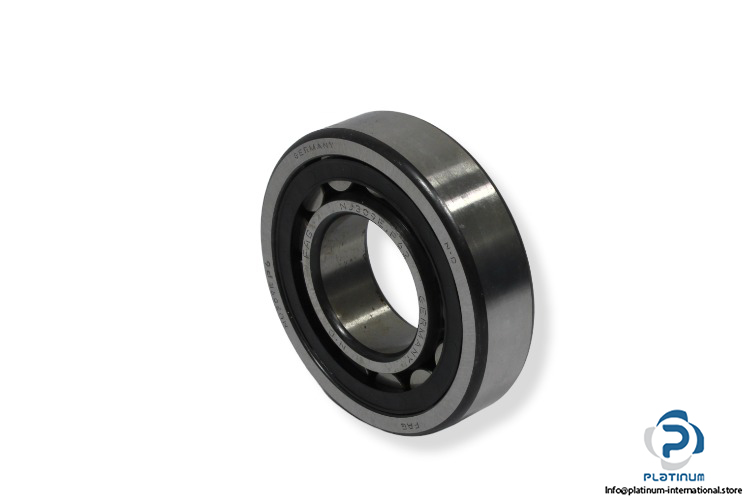

FAG NJ309E.TVP2.P62 Cylindrical Roller Bearing

Manufacturer: Schaeffler FAG

Type: Cylindrical Roller Bearing

Model: NJ 309 E TVP2 P62

Replaces: NJ309-E-XL-TVP2

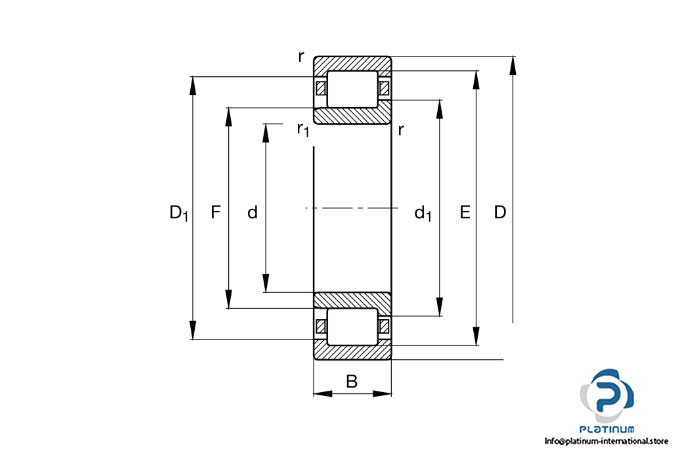

Dimensions:

Bore Diameter d: 45 mm

Outer diameter D: 100 mm

Width B: 25 mm

Basic load ratings, radial:

Dynamic C_r: 116000 N

Static C_0r: 99000 N

Fatigue load rating, radial: 17500 N

Limiting speed: 8500 rpm

Reference speed: 6400 rpm

Tolerance Class: P6

Cage: TVP2, Solid Window Cage made from PA66

Operating temperature: -30 … +120 °C
