FAG NNU4964M.CNA Double ROW Cylindrical Roller Bearing

Manufacturer: Schaeffler FAG

Type: Super precision cylindrical roller bearing, double row, separable

Model: NNU 4964 M CAN

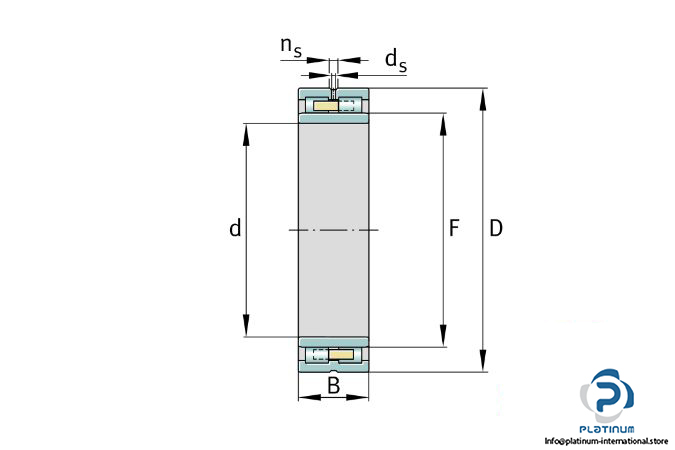

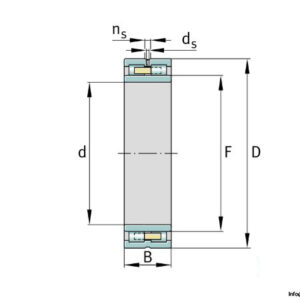

Dimensions:

Bore Diameter d: 320 mm

Outer diameter D: 440 mm

Width B: 118 mm

Minimum chamfer dimension r_min: 3 mm

Basic load ratings:

Dynamic C_r: 1070000 N

Static C_0r: 2550000 N

Fatigue load limit: 275000 N

Limiting speed:

Grease lubrication: 1670 rpm

Oil lubrication: 1960 rpm

Cage Material: Brass Cage

Operating temperature: -30 … +150 °C

Bore type: Cylindrical

Weight: 54 kg
