FAG NU 217E.TVP2 Cylindrical Roller Bearing
New
In stock1 unitReady to ship
Cylindrical Roller Bearing
Single row FAG cylindrical roller bearing with increased load capacity, PA66 solid window cage, and high-speed capability for industrial applications.bearingCageCapacityCylindricalDesignFagHighIncreasedIndustrialLoadNUNU217ERollerRowSchaefflerSingleTVP2
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

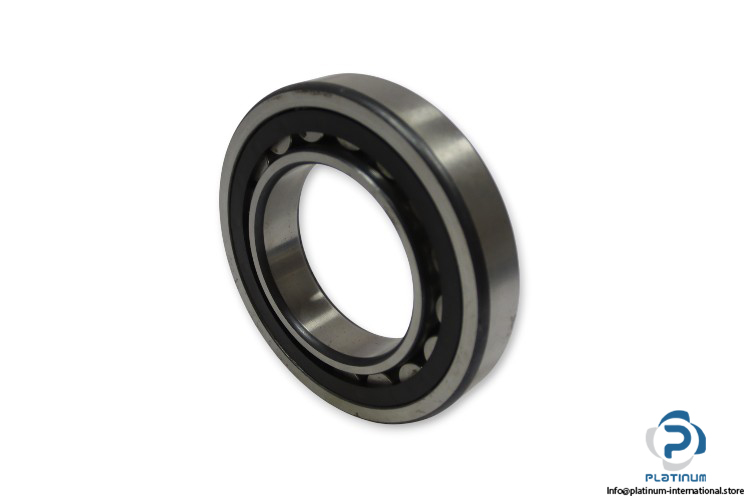

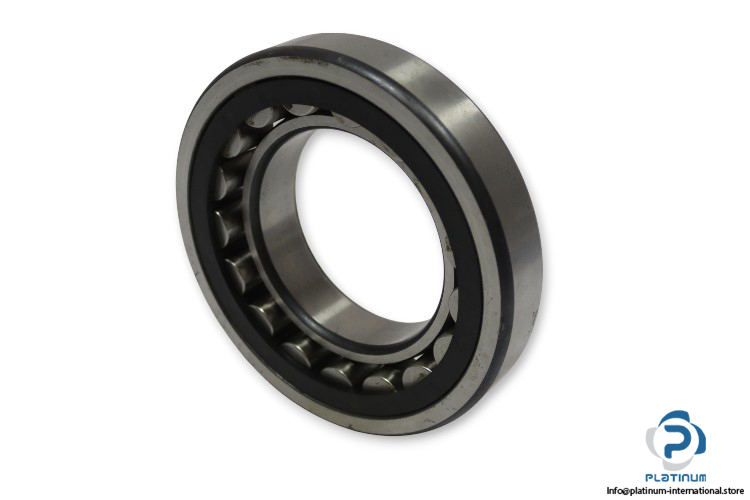

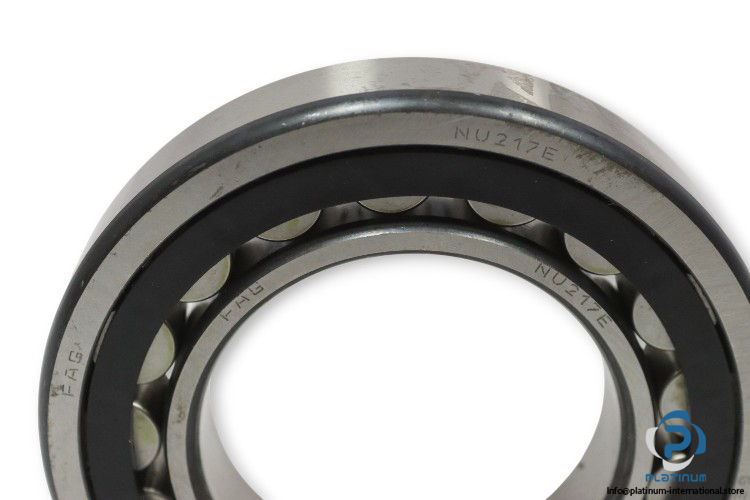

FAG NU217E.TVP2 Cylindrical Roller Bearing
The FAG NU217E.TVP2 is a single row cylindrical roller bearing designed to accommodate high radial loads and operate reliably at elevated speeds in demanding industrial applications.
Manufacturer: FAG / Schaeffler
Type: Single Row Cylindrical Roller Bearing
Model: NU217E.TVP2
| Design | NU |
| Bore Diameter | 85 mm |
| Outer Diameter | 150 mm |
| Width | 28 mm |
| Dynamic Load Capacity (Cdyn) | 194,000 N |
| Static Load Capacity (C0) | 194,000 N |
| Fatigue Load Limit | 26,500 N |
| Limiting Speed | 6,400 1/min |
| Reference Speed | 4,000 1/min |
| Cage | TVP2, Solid Window Cage made from PA66 |
| Suffix | E, Increased Capacity Design |
