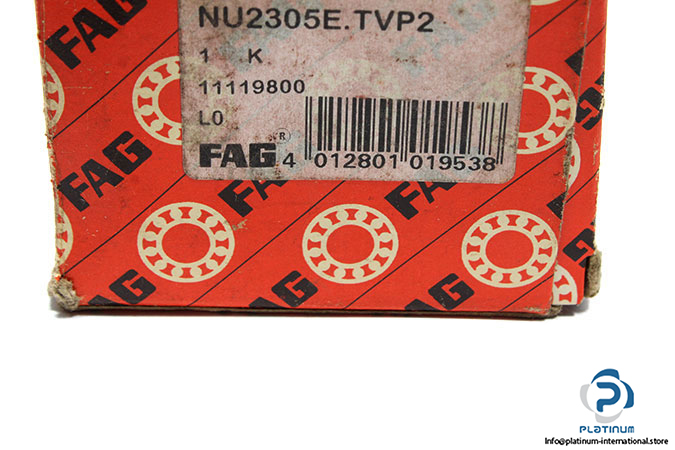

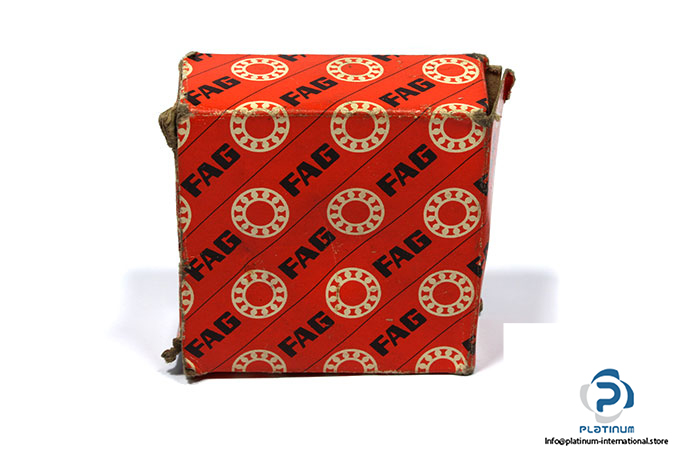

FAG NU2305E.TVP2 Cylindrical Roller Bearing
New
In stock3 unitsReady to ship
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: FAG
Type: Cylindrical Roller Bearing
Model: NU2305 E TVP2
Replaces: NU2305-E-XL-TVP2

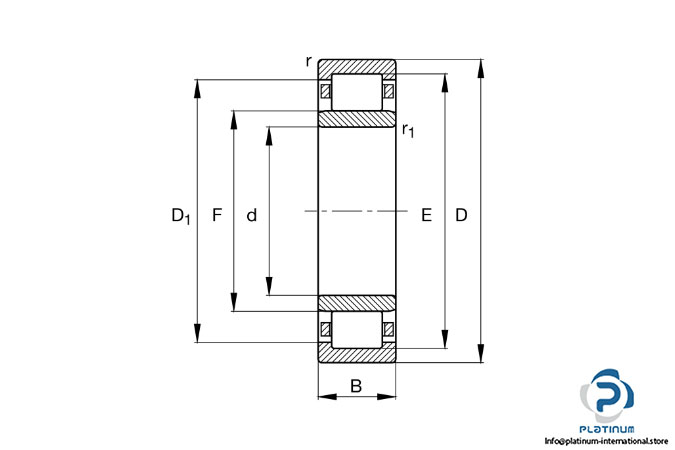

Dimensions:
Bore Diameter d: 25 mm
Outer diameter D: 62 mm
Width B: 24 mm
Basic load ratings, radial:
Dynamic Cr: 67000 N
Static C0r: 56000 N
Fatigue load rating, radial: 9300 N
Limiting speed: 16500 rpm
Reference speed: 8200 rpm
Cage: TVP2, Solid Window Cage made from PA66
Operating temperature: -30 … +120 °C
