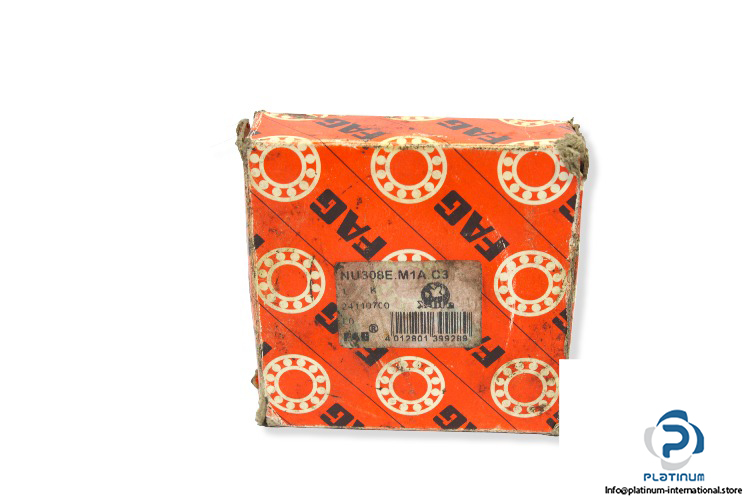

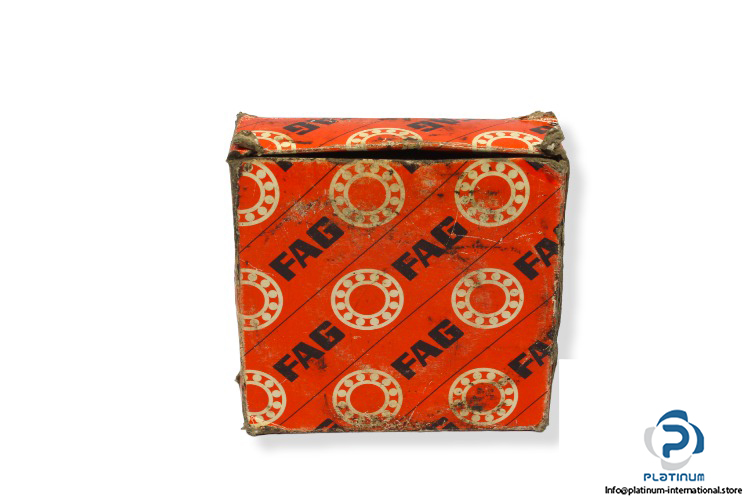

FAG NU308E.M1A.C3 Cylindrical Roller Bearing

Manufacturer: Schaeffler FAG

Type: Cylindrical Roller Bearing

Model: NU308 E M1A C3

Replaces: NU308-E-XL-M1

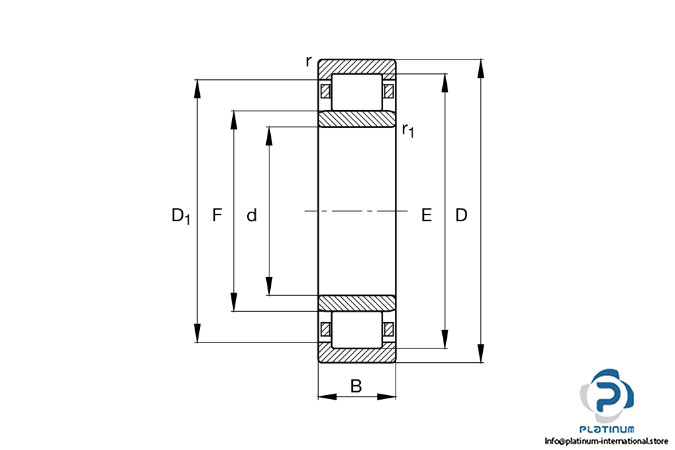

Dimensions:

Bore Diameter d: 40 mm

Outer diameter D: 90 mm

Width B: 23 mm

Basic load ratings, radial:

Dynamic C_r: 96000 N

Static C_0r: 79000 N

Fatigue load rating, radial: 10400 N

Limiting speed: 14200 rpm

Reference speed: 7100 rpm

Clearance: C3

Cage: M1A, Two Piece Brass Cage Lip guided

Operating temperature: -30 … +150 °C
