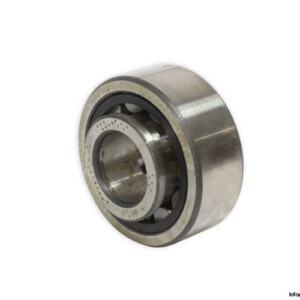

FAG NUP2305E.TVP2 Cylindrical Roller Bearing
New
In stock1 unitReady to ship
CYLINDRICAL ROLLER BEARING
FAG NUP 2305 E.TVP2 cylindrical roller bearing with 25 mm bore, 62 mm outer diameter, 24 mm width, and solid PA66 cage. High load capacity and speed performance for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
FAG NUP 2305 E.TVP2 CYLINDRICAL ROLLER BEARING
The FAG NUP 2305 E.TVP2 is a high-quality cylindrical roller bearing designed for reliable performance in demanding industrial applications. Built with a solid PA66 cage and precision engineering, it ensures long service life, high load capacity, and consistent operation at elevated speeds.
Manufacturer: FAG
Type: Cylindrical Roller Bearing
Model: NUP 2305 E.TVP2
| Bore Diameter (d) | 25 mm |
| Outer Diameter (D) | 62 mm |
| Width (B) | 24 mm |
| Basic Load Ratings, Radial | Dynamic Cr: 67000 N / Static C0r: 56000 N |
| Fatigue Load Rating, Radial | 9300 N |
| Limiting Speed | 16500 rpm |
| Reference Speed | 8200 rpm |
| Cage | TVP2, Solid Window Cage made from PA66 |
