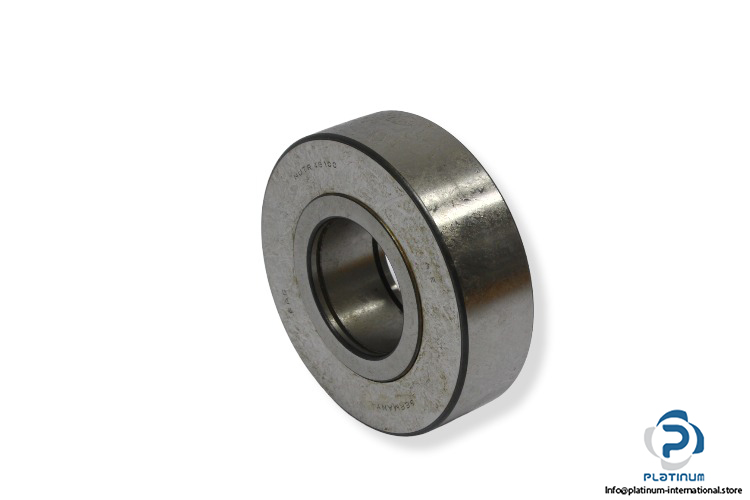

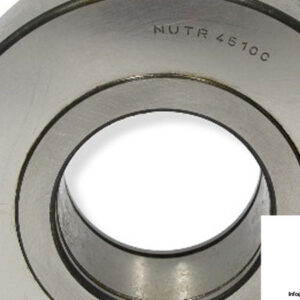

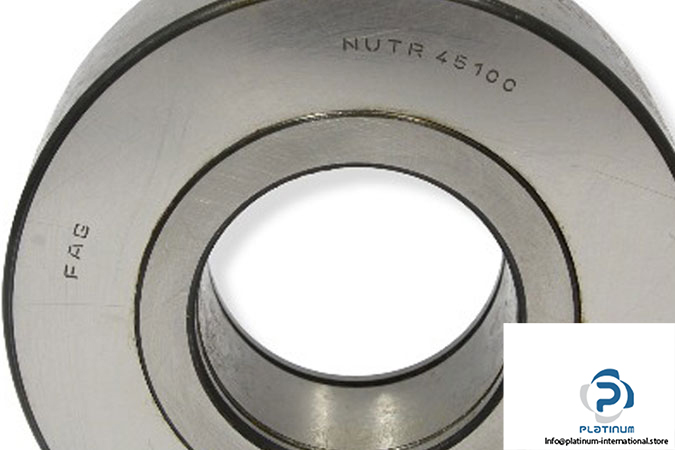

FAG NUTR45100 Yoke Type Track Roller

Manufacturer: Schaeffler FAG

Type: Yoke type track rollers NUTR, full complement cylindrical roller set, with axial guidance, labyrinth seals on both sides

Model: NUTR 45100

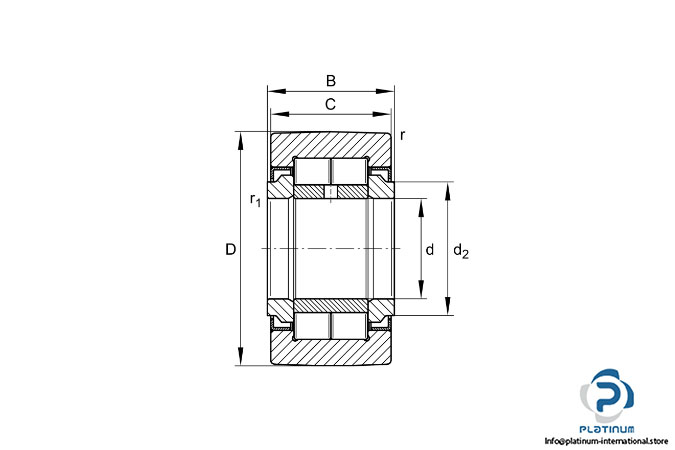

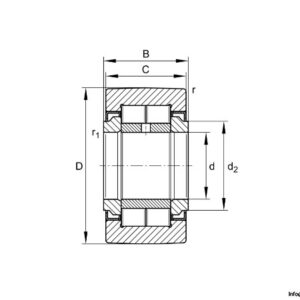

Dimensions:

Bore Diameter d: 45 mm

Outer diameter D: 100 mm

Width of the bearing B: 32 mm

Width outer ring C: 30 mm

Basic load ratings:

Dynamic C: 73000 N

Static C₀: 114000 N

Fatigue load limit P_u: 16100 N

Permissible dynamic load outer ring, radial F_r: 105000 N

Permissible static load, radial F_0r: 114000 N

Speed on permanent grease lubrication: 1400 rpm
