Fanuc A06B-0064-B503 AC Servo Motor

Available on request

AC Servo Motor

Fanuc BIS 4/4000 HV AC Servo Motor delivers high-precision motion control with a stall torque of 3.5 Nm, a rated speed of 3000 min-1, and a protection class of IP65. With an output power of 0.75 KW, it ensures efficiency and durability in industrial automation.

Manufacturer
FANUC
SKU
980808
Category
Servo Motors
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

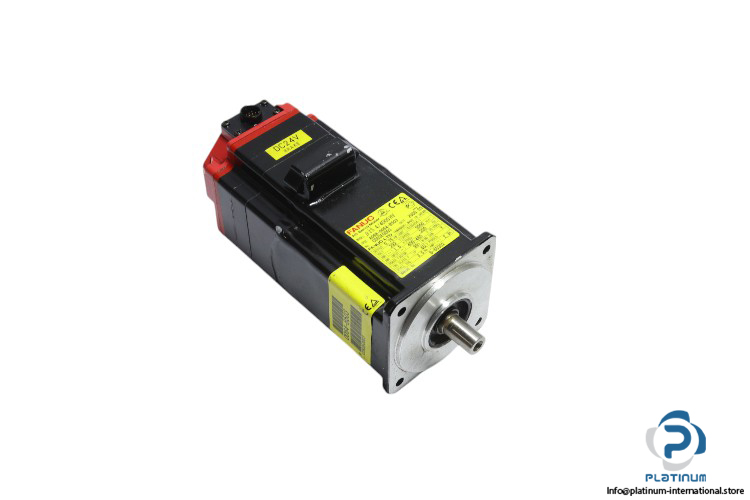

Fanuc BIS 4/4000 HV AC Servo Motor

The Fanuc BIS 4/4000 HV AC Servo Motor is a high-performance motor designed for industrial automation applications requiring precision, efficiency, and durability. It delivers a stall torque of 3.5 Nm and operates at a rated speed of 3000 min-1, ensuring reliable motion control. This motor features a protection class of IP65, making it suitable for harsh environments, and is compliant with IEC60034-1 standards.

  • Manufacturer: Fanuc
  • Type: AC Servo Motor
  • Model: BIS 4/4000 HV
  • MNR: A06B-0064-B503
  • Part No.: C083E0003

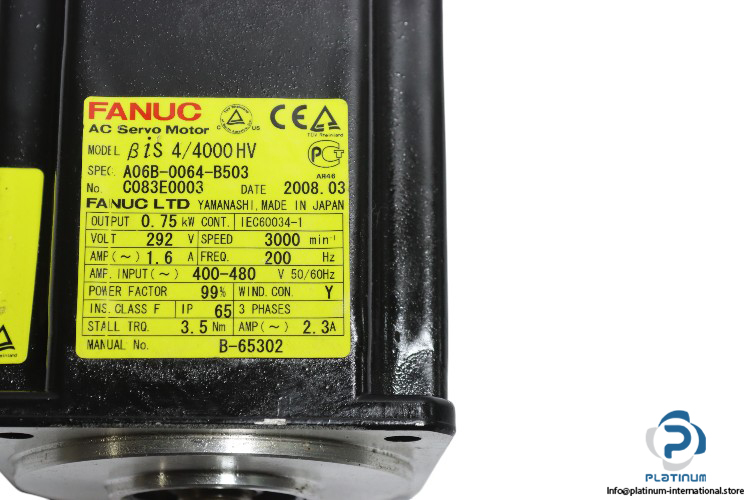

Technical Specifications

Input

  • Rated Voltage: 400 / 480 V
  • Rated Current: 2.3 A
  • Stall Torque: 3.5 Nm
  • Power Factor: 0.99
  • Frequency: 50/60 Hz

Output

  • Rated Voltage: 292 V
  • Rated Current: 1.6 A
  • Rated Speed: 3000 min-1
  • Frequency: 200 Hz
  • Output Power: 0.75 KW
  • Thermal Class: F
  • Protection Class: IP65
  • Standard: IEC60034-1

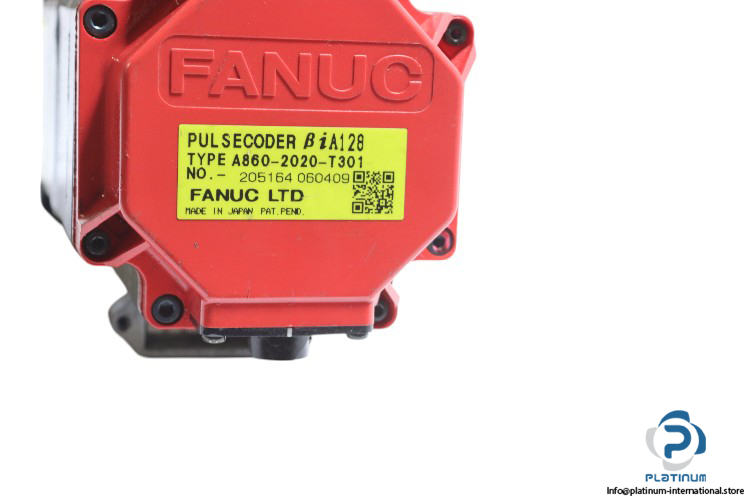

Attached Encoder

  • Model: FANUC A860-2020-T301
  • Encoder Model: BIA128
  • Encoder Part No.: 205164 060409
  • Encoder MNR: 205164 060409
