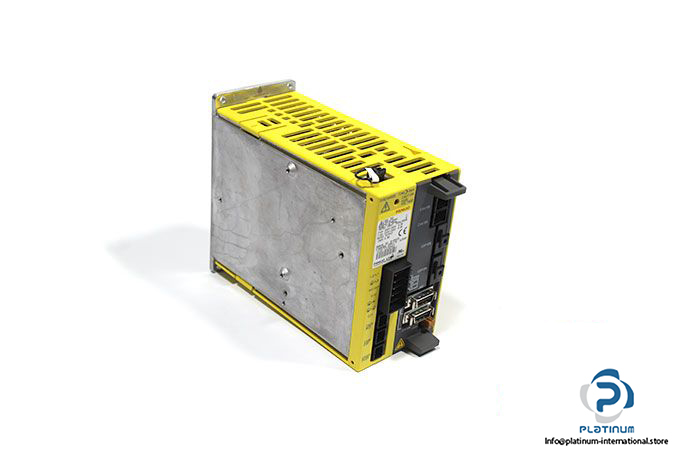

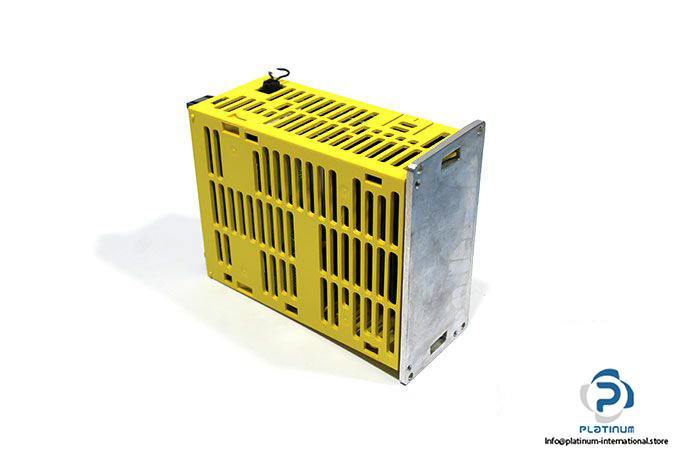

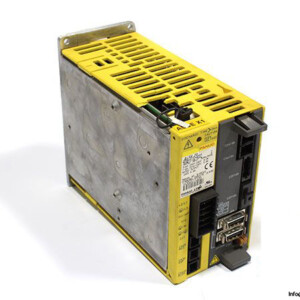

Fanuc A06B-6130-H002 Servo Amplifier

Manufacturer: Fanuc

Type: Servo Amplifier

Model: A06B-6130-H002

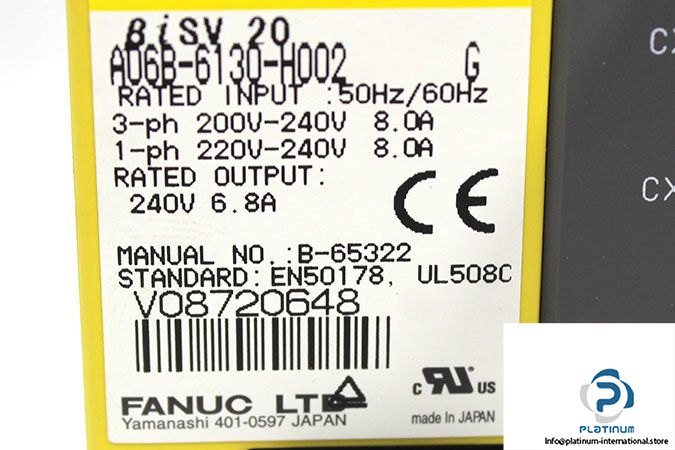

Input

Voltage Rating: 3 Phase 200…240 V AC / Single Phase 220…240 VAC

Power Supply: 24 V DC

Current: 8.0/8.0 A

Frequency: 50/60 Hz

Power: 2.24 kW (2.8 kVA) / 1.52 kW (1.9 kVA)

Output

Voltage Rating: 240 V AC

Rated Current: 6.8 A

Max. Current: 20 A

Frequency: 0…334 Hz

Application: CNC

Ambient Temperature: 0…55 °C

Dimensions: 172 x 129 x 74 mm

Weight: 1.4 kg
