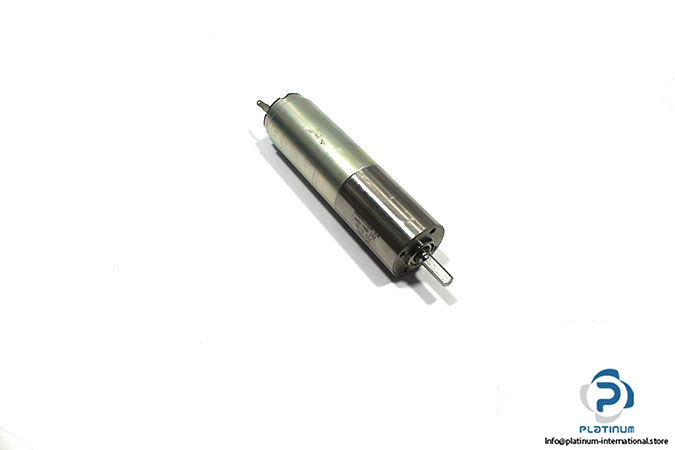

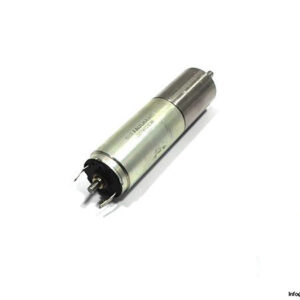

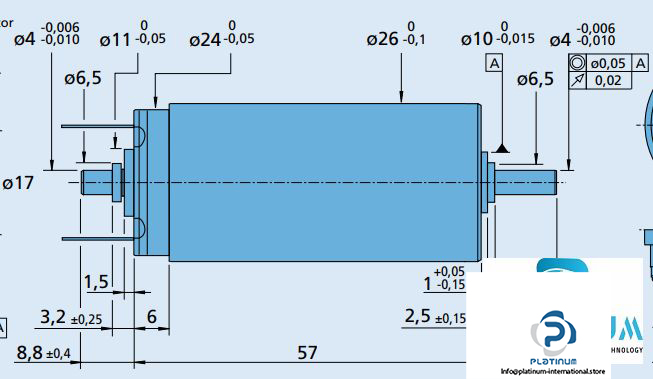

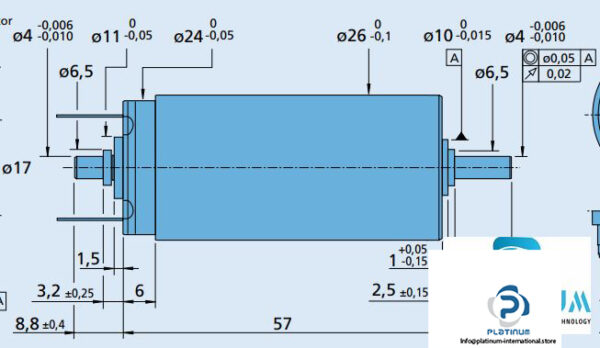

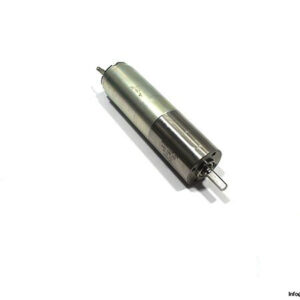

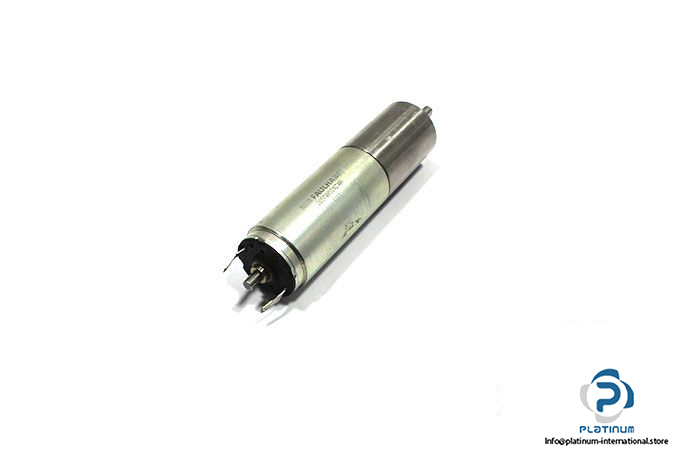

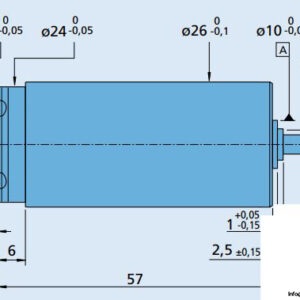

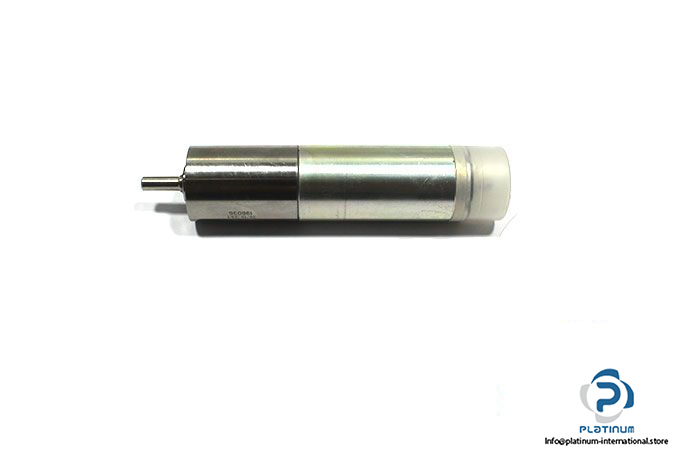

Faulhaber 2657W024CXR DC-Micromotor

Manufacturer: Faulhaber

Type: DC-Micromotors

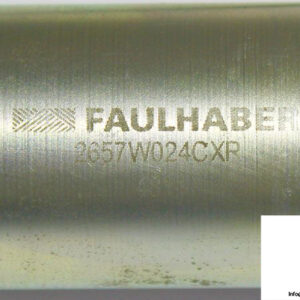

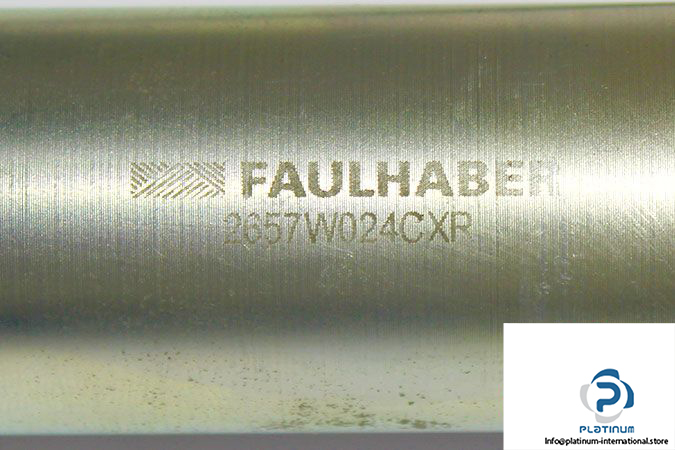

Model: 2657 W 024 CXR

Nominal Voltage [VDC]: 24

Rated Torque [mNm]: 40

Rated Power [W]: 34

Rated Current [A]: 1.2

Rated Speed [rpm]: 5110

No-Load Speed [rpm]: 5800

No-Load Current [A]: 0.052

Stall Torque [mNm]: 302.9

Friction Torque [mNm]: 2

Torque Constant [mNm/A]: 38.67

Current Constant [A/ mNm]: 0.026

Terminal Resistance [Ω]: 2.98

Efficiency, Max. [%]: 84

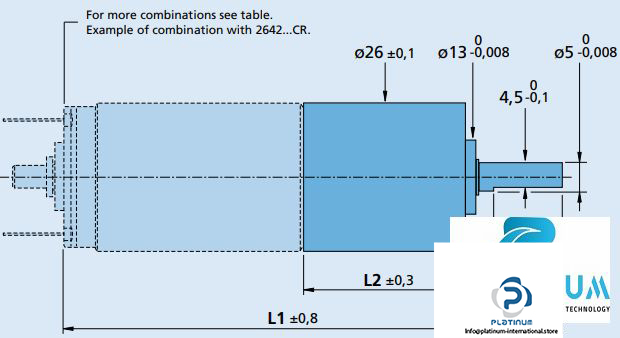

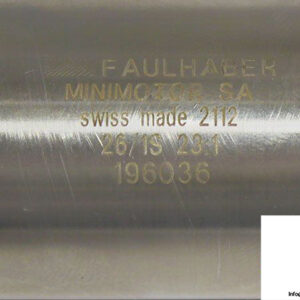

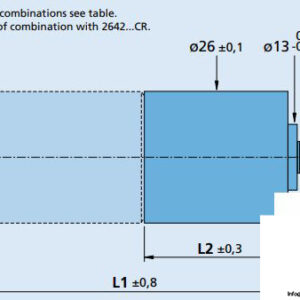

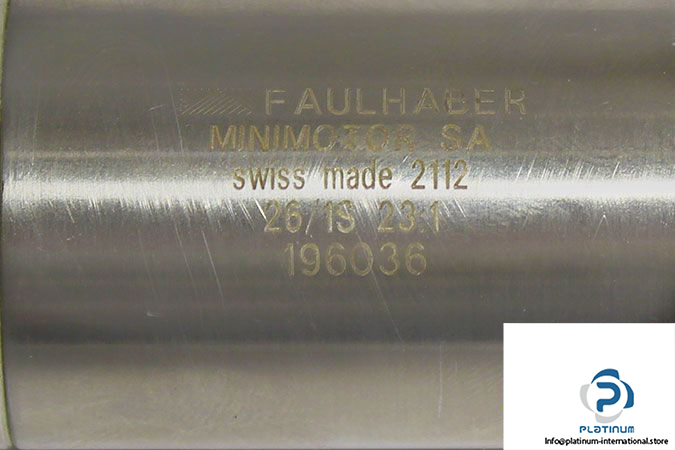

Attachment: FAULHABER 26/1S PLANETARY GEARHEAD

Manufacturer: Faulhaber

Type: Planetary Gearheads

Model: 26/1S

Reduction Ratio [i]: 23:1

Housing Material: Steel

Geartrain Material: Steel

Number of Gear Stage: 2

Continuous Torque [Nm]: 3.5

Intermittent Torque [Nm]: 4.5

Efficiency, Max. [%]: 80

Gross Weight [kg]: 0.275
