Festo 10348 Single Solenoid Valve With Coil
Used
In stock1 unitReady to ship
Single Solenoid Valve
FESTO MFH-5-1/8-S single solenoid 5/2-way monostable valve with G1/8 connection, 500 l/min flow rate, and 24 VDC solenoid coil for pneumatic control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

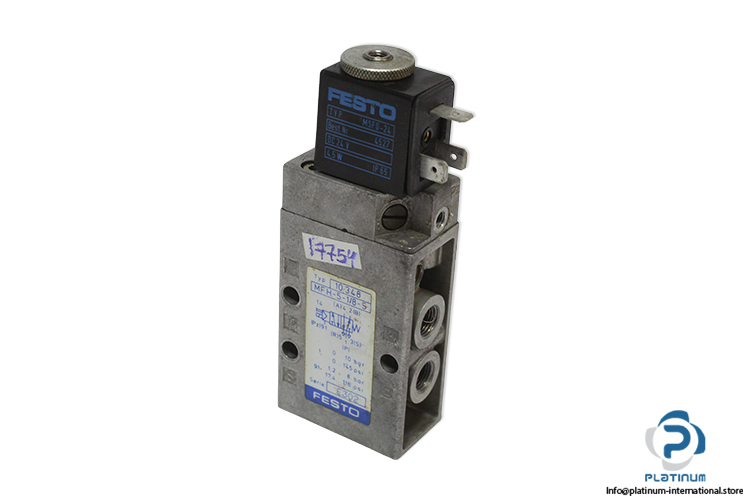

FESTO MFH-5-1/8-S Single Solenoid Valve
The FESTO MFH-5-1/8-S is a single solenoid, 5/2-way monostable pneumatic valve designed for precise and reliable control of compressed air systems. With a compact construction width and robust aluminum die-cast body, this valve delivers stable performance in industrial automation environments.
Manufacturer: FESTO
Type: Single Solenoid Valve

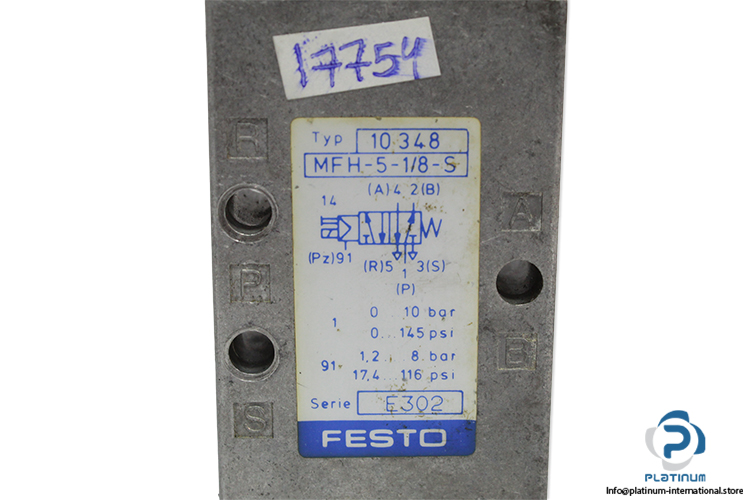

Model: MFH-5-1/8-S
Part No.: 10348
Series: E302
| Fluid | Air |
| Construction Width | 26 mm |
| Function | 5/2-Way, Monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 0 / 10 bar |
| Pilot Pressure | 1.2 / 8 bar |
| Nominal Flow Rate | 500 l/min |
| Pneumatic Connection | G1/8 |
| Material | Aluminium Die Cast |
| Ambient Temperature | -5 / 40 °C |

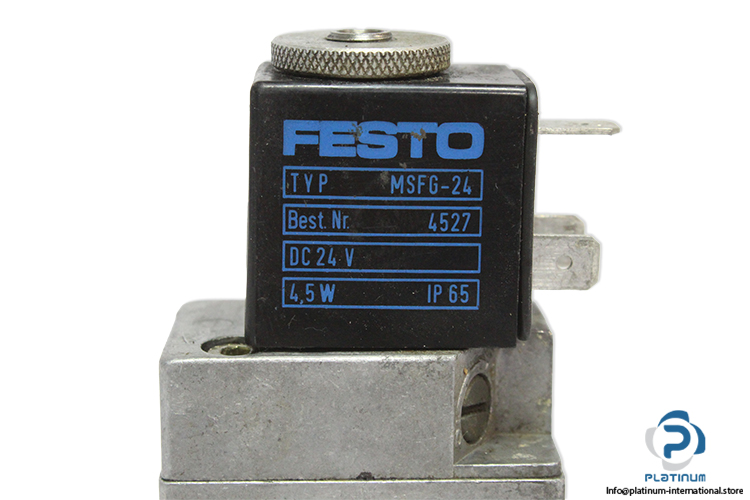

| Attached With | FESTO MSFG-24 Solenoid Coil |
| Coil Part No. | 4527 |
| Voltage | 24 VDC |
| Power | 4.5 W |
| Protection Class | IP65 |
