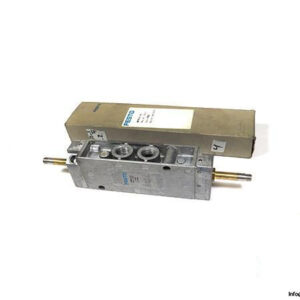

Festo 10410 Double Solenoid Valve With Coil

FESTO JMFH-5-1/4 DOUBLE SOLENOID VALVE WITH SOLENOID COIL MSFG-24

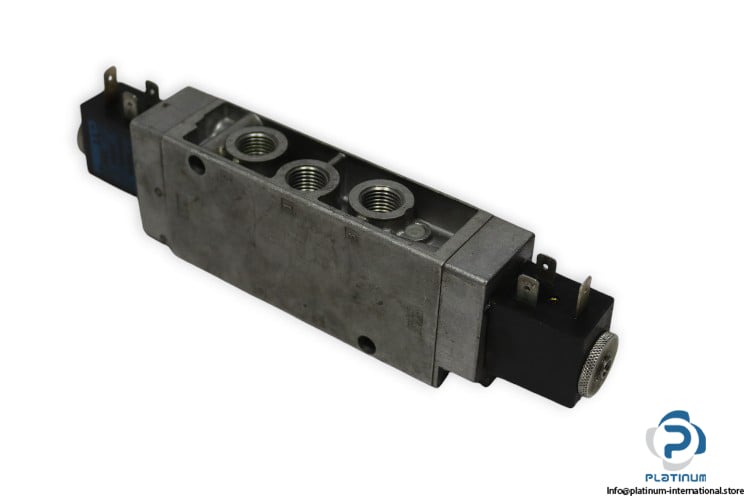

The FESTO JMFH-5-1/4 is a high-performance 5/2 double solenoid valve built for demanding pneumatic applications. Featuring a poppet seat design and robust aluminium die-cast body, this valve ensures precise air flow control under varying conditions. It includes the FESTO MSFG-24 solenoid coil for reliable electrical actuation and IP65-rated protection.

Manufacturer: FESTO
Type: Double Solenoid Valve

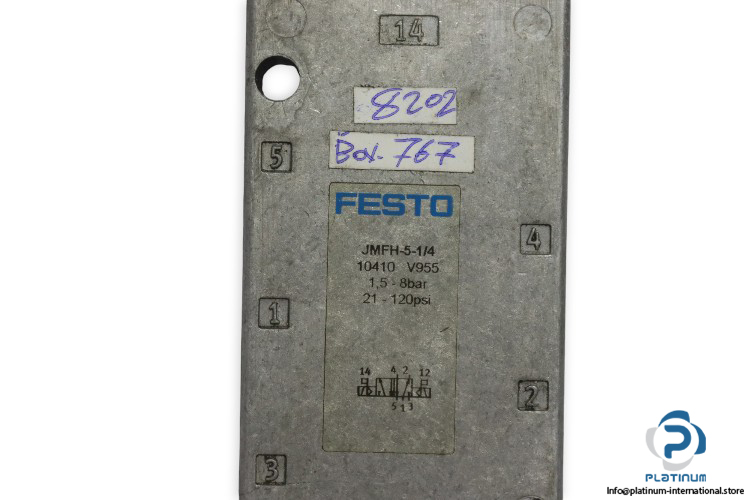

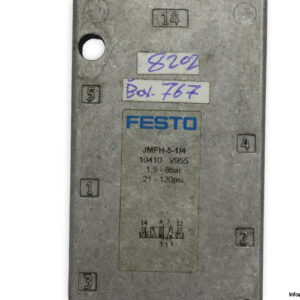

Model: JMFH-5-1/4
Part No.: 10410

Valve Technical Information

• Fluid: Air
• Design: Poppet seat
• Function: 5/2 Double Solenoid
• Type of Actuation: Electrically
• Operating Pressure: 1.5 to 10 bar
• Nominal Flow Rate: 1100 l/min
• Pneumatic Connection: G1/4
• Material: Aluminium die cast
• Ambient Temperature: -5 to 40 °C

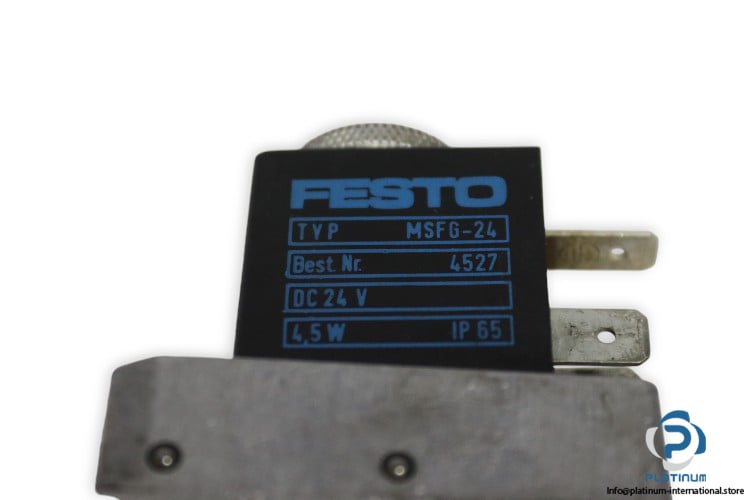

Solenoid Coil Attachment: FESTO MSFG-24

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSFG-24
Part No.: 4527

Solenoid Coil Technical Information

• Supply Voltage: 24 V DC
• Power Consumption: 4.5 W
• Protection Class: IP65
